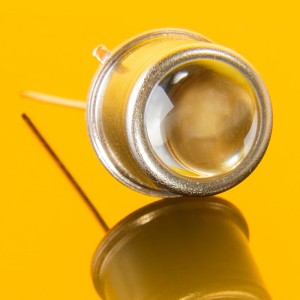

SG01D-5Lens (UV Broadband, 0.50 mm2, TO-5 with concentrator lens)

Item Description

The SG01D-5Lens is an extremely versatile high performance SiC detector (0.50 mm2), with broadband spectral response (UVA+UVB+UVC) in a rugged TO-5 package with a concentrator lens.  The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.13 A/W
Wavelength of max spectral response 280 nm
Broadband - Responsivity range (R=0.1 x Rmax) 221 to 358 nm
Package TO-5
Optics Concentrator lens
Active area

0.50 mm2

Operating temperature -55 to 170 C
