375nm UVA LED - SMD Packages - High and Medium Power

Item Description

We offer 375nm UVA LED in SMD packages with medium and high output. SMD size, power and field of view vary, providing you with multiple product options. See the Tech Specs tab above for a summary table of product features. Select your chosen device at the pull down tab.

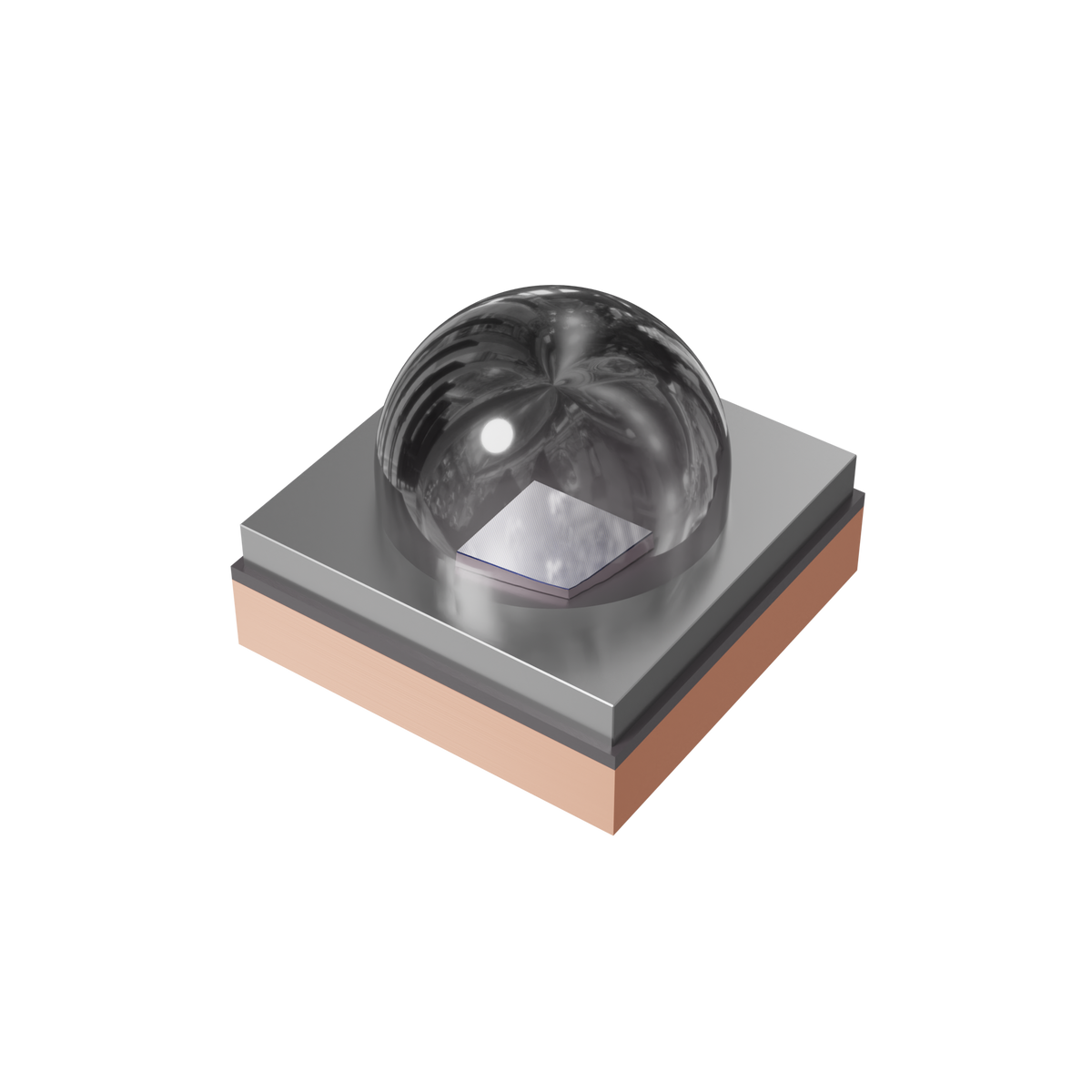

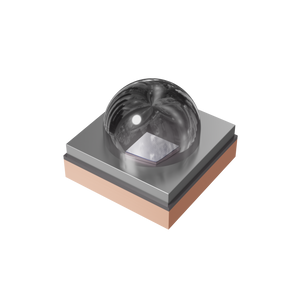

  • Medium power 5.2mm SMD

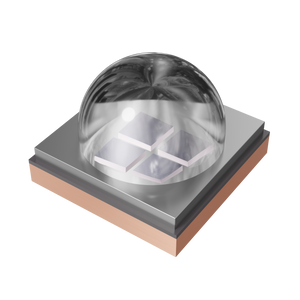

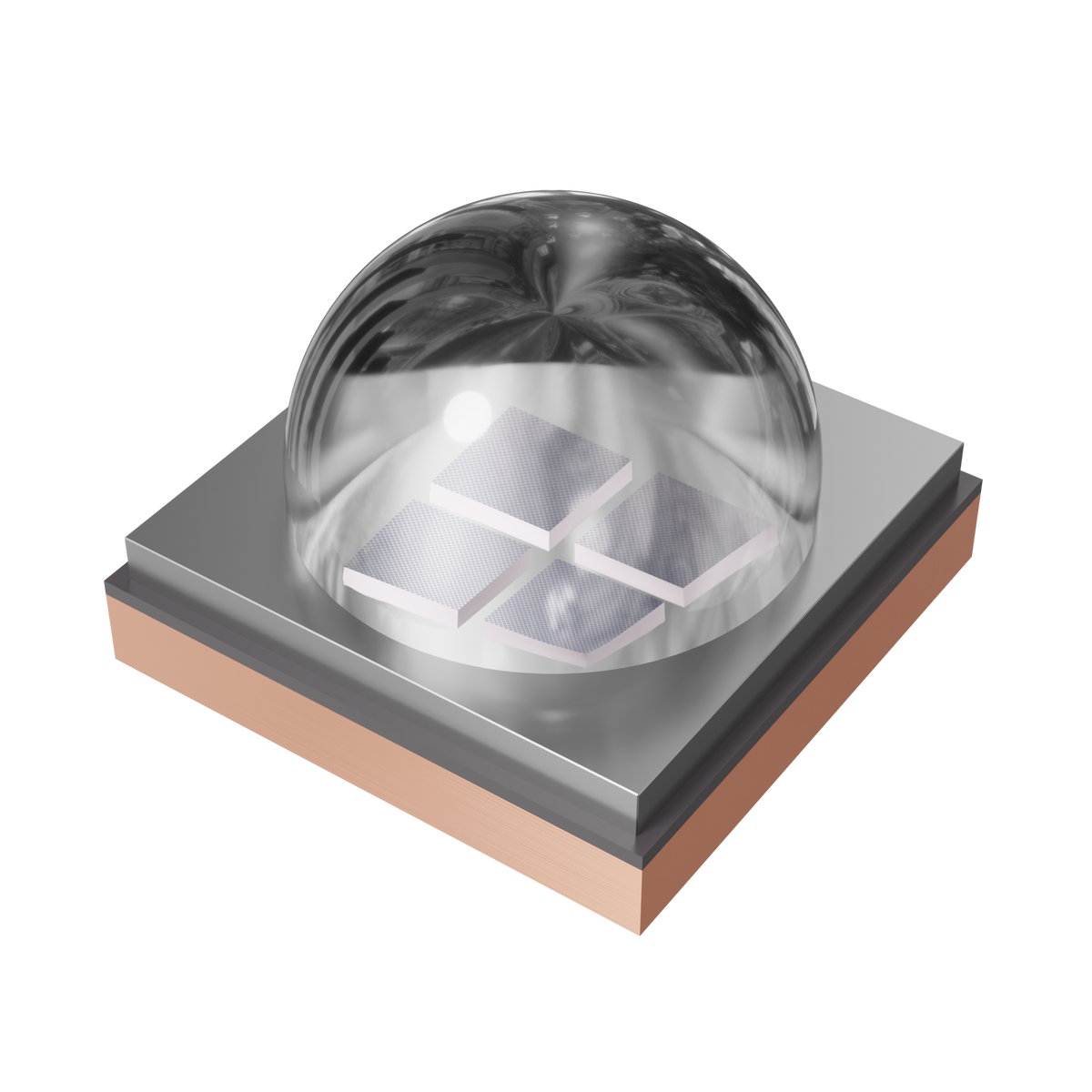

  • High power 7.2mm SMD

SMD are also available in chip-on-board (COB) configurations on the COB pages in the store. Violumas UV LED have high output and low power consumption.

See the 375nm LED Catalog with device specifications at the Download PDF tab above.  To see the full line of Violumas UV LED that we offer click here.

If you are pulsing your LEDs see the UPS Driver Board for programmable control of your devices.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Medium Power SMD High Power SMD
Power output 930 mW 3300 mW
Forward current 1000 mA 2000 mA
Forward voltage 3.9 V 7.8 V
Peak wavelength 375 +/- 5 nm 375 +/- 5 nm
Spectrum FWHM 12.0 nm 12.0 nm
Viewing angle (half power) 60 deg. 90 deg.
SMD 5.2 x 5.2 mm 7.2 x 7.2 mm
