Long-wave infrared detector module with preamp HS-1

    Item Description

    This item is for purchase and shipment only in North America (USA, Canada, Mexico).  Please contact your local Hamamatsu office in other countries.

    Easy-to-use InAsSb detector module with built-in preamp.

    Features

    • High S/N
    • DC to 1MHz bandwidth
    • 10.2um cutoff
    • Compact size
    • Easy to use. Operates just by connecting to DC power supply
    • Circuit design optimized for detector characteristics
    • Built-in temperature control circuit
    • RoHS compliant

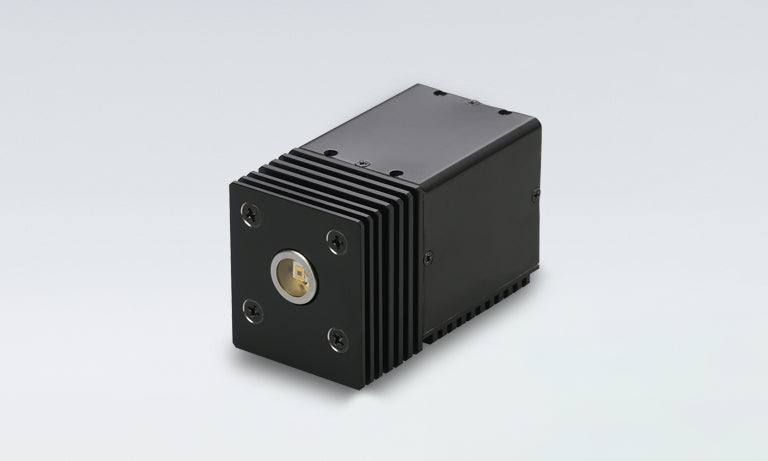

    This is an "all-in-one” IR detection module. A thermoelectrically cooled, InAsSb photovoltaic detector is integrated with a transimpedance preamplifier, a heat sink and thermoelectric cooler controller in a compact housing.  The module is a user‑friendly device, thus can be easily used in a variety of applications.

      Please contact us to discuss your specific needs and to ensure you have selected the best set for your measurement needs.  boselec@boselec.com  +1-617-566-3821

        Product Technical Specs

        • Summary product specifications are below
        • View and download the detailed product sheet at the Download PDF tab
        • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
         Detector/Preamplifier
        Part Number C12494-211L
        Type Photovoltaic InAsSb detector
        Cooling TE cooled
        Detector Size 1x1mm

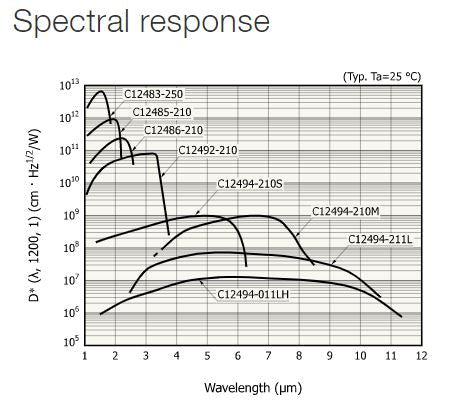

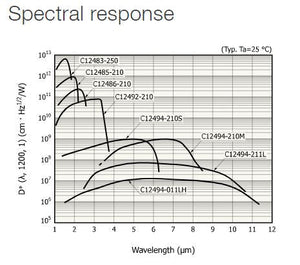

        Cut-off Wavelength 10.2um
        Peak wavelength 5.6um
        Bandwidth DC to 1MHz
