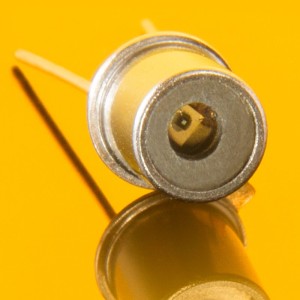

SG01S-A18 (UVA, 0.6mm2, TO-18)

Item Description

The SG01S-A18 is a high performance SiC detectors (0.06mm2), with UVA spectral response in a rugged TO-18 package.  The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.037 A/W
Wavelength of max spectral response 331 nm
UVA - Responsivity range (R=0.1 x Rmax) 309 to 367 nm
Package TO-18
Active area

0.06 mm2

Operating temperature -55 to 170 C
