Applications Sets are available for quick-start imaging capability, and allow fast implementation of your system design. These are turnkey kits ready to go out of the box. Application Sets include an IR-Camera with integrated optics and an Ethernet interface for easy computer integration.
A feature-rich Windows-based visualization program (ArraySoft) allows control and visualization of the image and temperature data streams from up to four cameras.

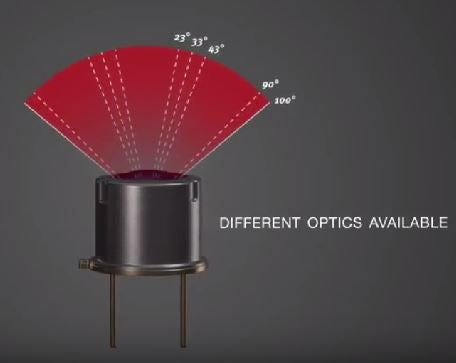

Multiple fields of view (FOV) are available (see Tech Specs tab).

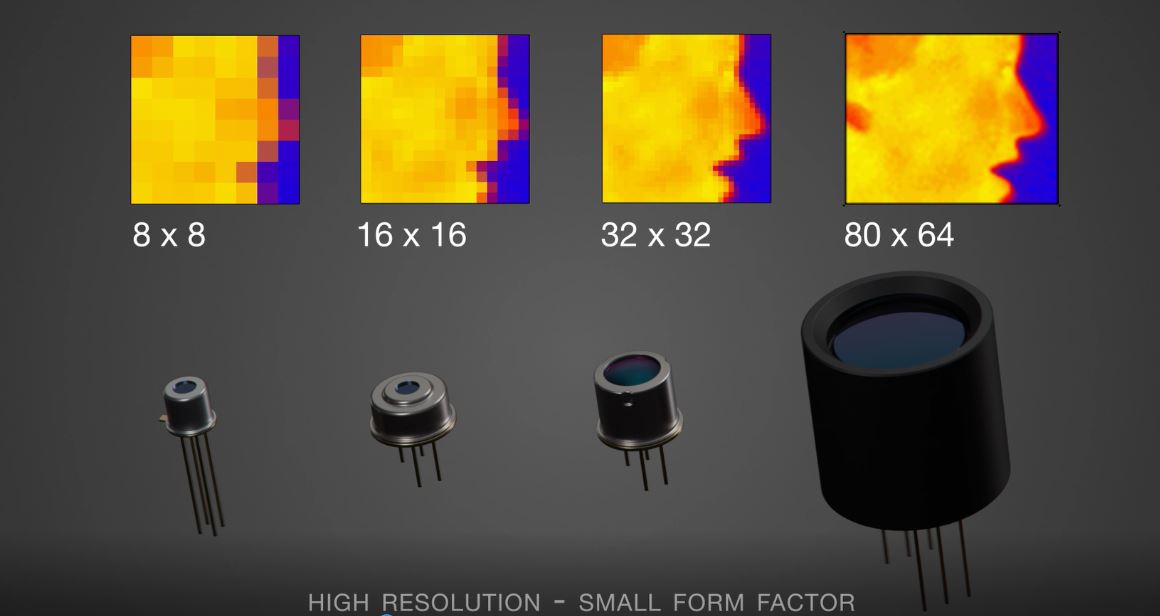

The 32x32 format cameras are socketed, i.e. you can interchange different 32x32 sensors within the same camera. This is convenient for evaluating different fields of view for your application.
Download link: Thermal Imaging Basics Application Note.
The set includes:

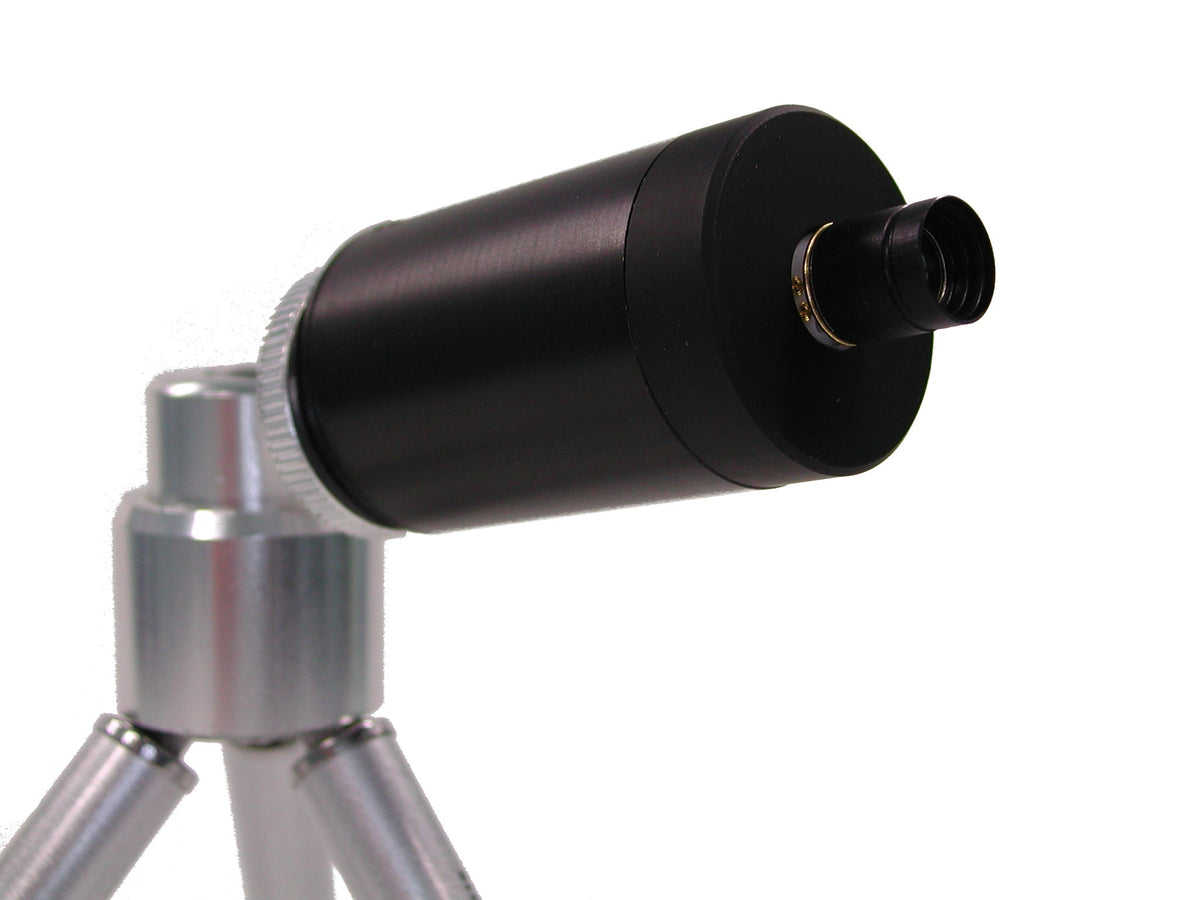

IR camera 32x32 digital interface (I2C)
Power supply
Table top tripod
Cables
ArraySoft software
| FOV / Optics |
90° x 90° (L2.1) - Silicon lens, f/0.8 40° x 40° (L4.0) - Ge lens, f/0.7, F7.7 cut on filter 33° x 33° (L5.0) - Ge lens, f/0.85, F7.7 cut on filter |
| Image | No shutter or thermal stabilization required |
| Power | via USB cable - included |
| ArraySoft Sofware | PC graphical user interface for HPTA application sets and sensor modules |
