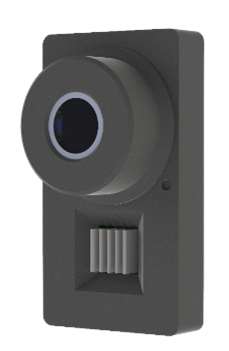

THz Beam Profiler - 160x120 Digital Imaging Camera (HRFZ-Si)

Item Description

Our 160x120 THz imaging application sets are available with flat HRFZ-Si (1.3 to THz) windows for use as a low-cost, simple-to-use beam profiling devices.

The included standard imaging camera software (ArraySoft) allows the user to measure and record the per pixel dats ready for your own analysis.

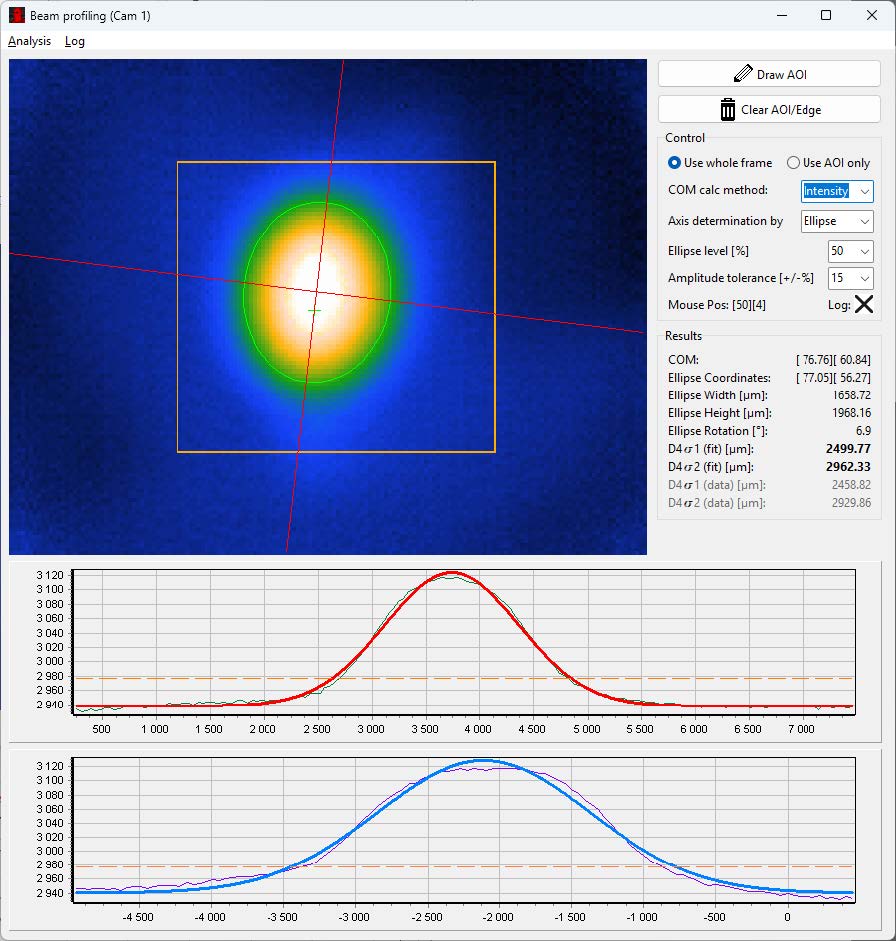

You can also purchase optional beam profiling software (ArraySoft Beam Profiler); it allows the user to visualize and analyze beam shape and intensity, and extract, stream or save per pixel data.

ArraySoft Beam profiler V2 allows beam fitting with following algorithms:
•    Gauss- and Super-Gauss
•    Hermite-Gauss
•    Laguerre-Gauss
•    Knife-Edge-Method
•    Ellipsoid fit for lateral distribution and position

Additional features:
•    COM and COM² (Center Of Mass) calculation
•    Visualization amplitude reading vs time
•    Data logging (fitted and optional raw data)
•    Several preset color palettes
•    Customizable color palettes
•    Customizable AOI (Area Of Interest)
•    Dark frame subtraction

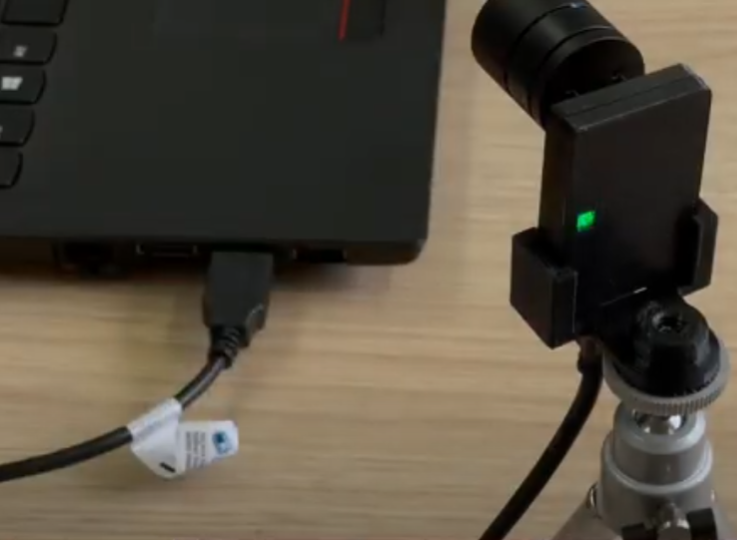

Applications Sets are available for quick-start imaging capability, and allow fast implementation of your system design. These are turnkey kits ready to go out of the box. Application sets include an infrared camera with integrated optics and a USB interface for easy computer integration.

The set includes:

THz camera 160x120 digital interface (SPI)
Power supply
Table top tripod
Cables
ArraySoft software

Product Technical Specs

• Summary specifications are below for the cameras we typically have in stock for online purchase
• Additional fields of view are available; refer to catalog
• View product catalog and download at the Download PDF tab
• Please contact us with any questions or for assistance via our contact request page or at 617-566-3821
