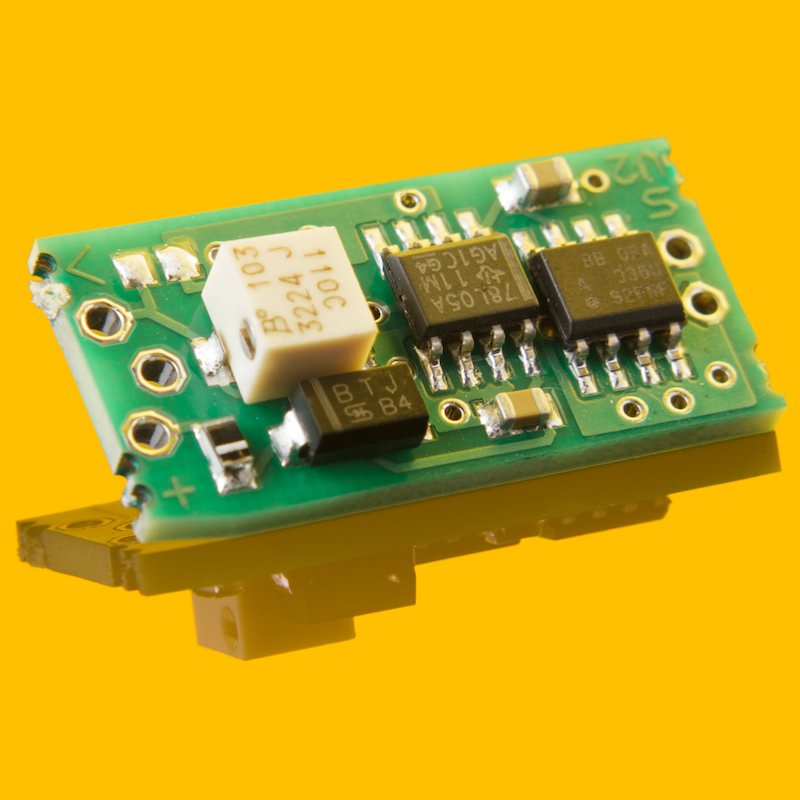

The Voltcon board converts a photocurrent into an output voltage between 0 and 5V. The present module works with a medium gain factor and converts a photocurrent of to an output of 5V.
Modules with a range of gains are available. Please refer to the specs tab and the PDF for more information.
|Photocurrent measurement range
||- VOLTCON_low 500 μA
- VOLTCON_med 5 μA
- VOLTCON_high 50 nA
- VOLTCON_flame 500 pA
|Input power||7 - 24 V|
|Output voltage||0 - 5 V proportional to applied photo current|
