High-speed , high sensitivity mid-wave infrared detector 5um

    Item Description

    This item is for purchase and shipment only in North America (USA, Canada, Mexico).  Please contact your local Hamamatsu office in other countries.

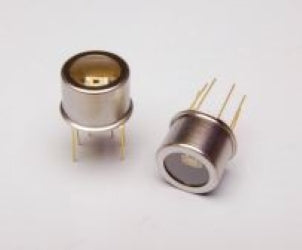

    Sensitive, room temperature 1.0 mm diameter MWIR detector.  Detector is a RoHS compliant InAsSb device, and can directly replace detectors containing lead, mercury, or cadmium. They are packaged in a TO-8 housing.

    Applications include gas sensing, FTIR, remote sensing, thermal radiation thermometers and flame detection. Typical gas analysis applications include CO2, SOx, CO and NOx.

    Features

    • High sensitivity
    • High-speed response
    • High shunt resistance
    • RoHS compliant (lead, mercury, cadmium free)

      Please contact us to discuss your specific needs and to ensure you have selected the best detector for your measurement needs.  boselec@boselec.com  +1-617-566-3821

        Product Technical Specs

        • Summary product specifications are below
        • View and download the detailed product sheet at the Download PDF tab
        • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
         Detector
        Part Number P11120-201
        Type Photovoltaic InAsSb detector
        Cutoff Wavelength 5.9 um
        Peak wavelength 4.9 um
        Cooling 2-stage TE cooler
        Detectivity D* = 5E9
        Rise time 400 ns
        Detector Size 1.0 mm diameter
        Window Al2O3
        Package TO-8
