For purchase and shipment only in North America (USA, Canada, Mexico). Please contact your local Hamamatsu office in other countries.
Advanced mid-IR LEDs are manufactured by Hamamatsu using unique crystal growth and process technologies. Output is significantly increased from prior products.
These devices feature:

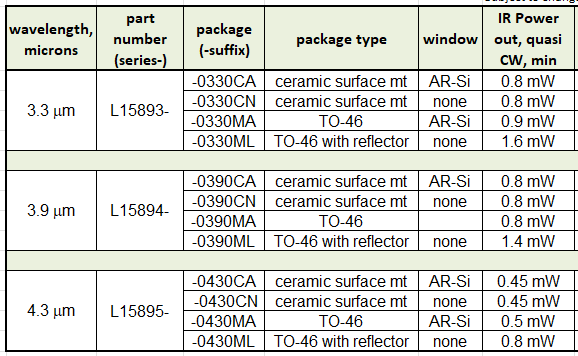

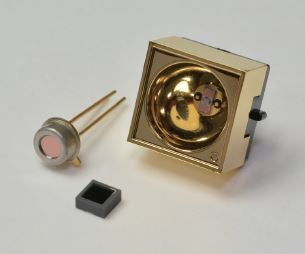

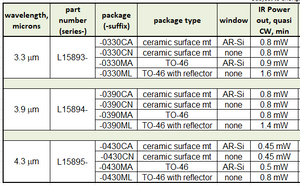

Available packages:

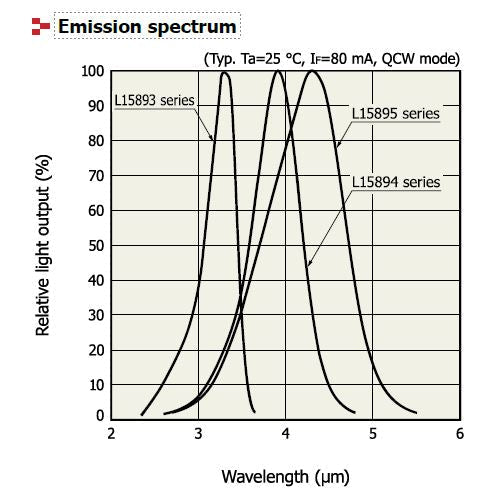

Peak Wavelength | 4.3 um |
Quasi-CW Power (minimum/typical) |
0.45/0.75 mW - SMD 0.6/1.0 mW - TO-46 0.8/1.4 mW -TO-46 w/reflector |
