HSL 5-115, HSL-115S & HSL 5-60 IR Lamps
Regular price
$4.10
Note: Minimum quantity order is five (5) pieces
Item Description

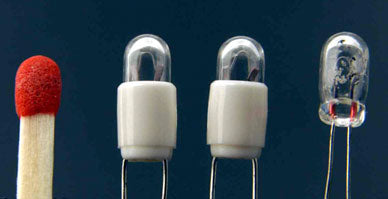

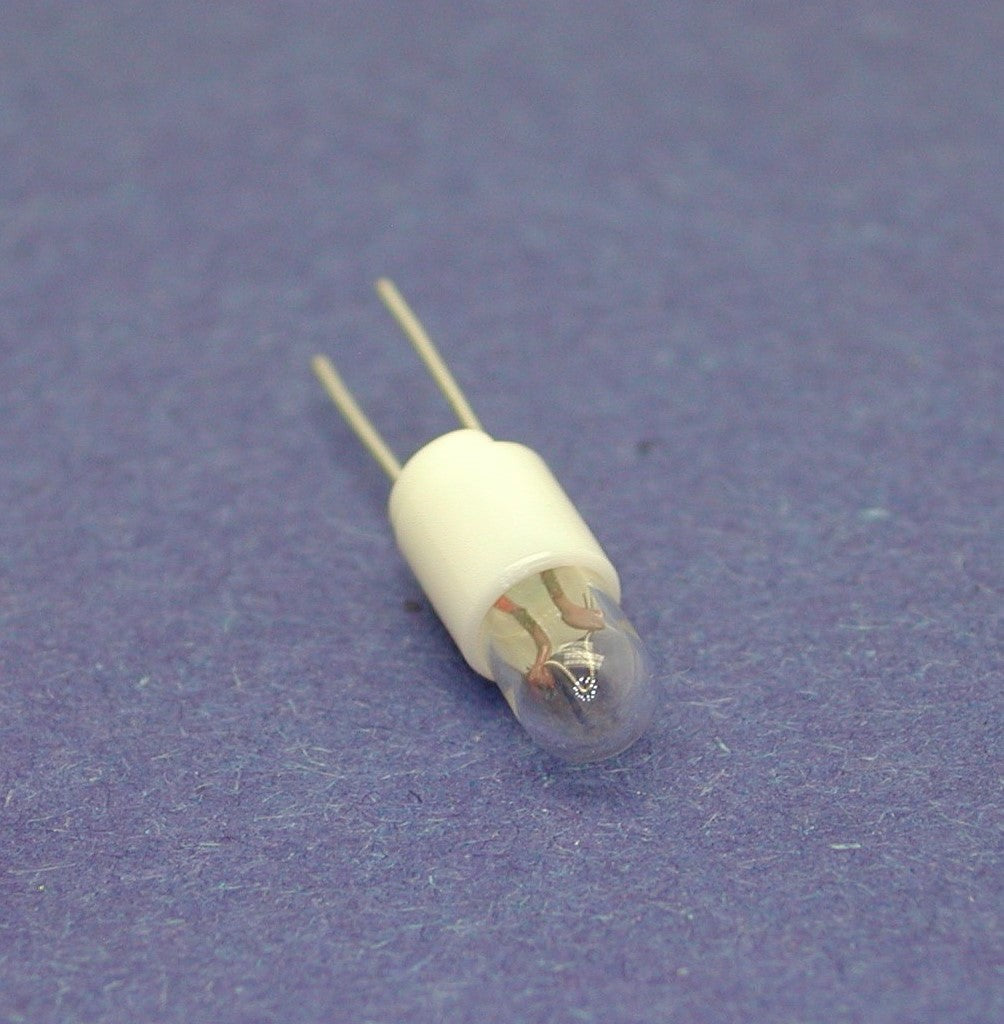

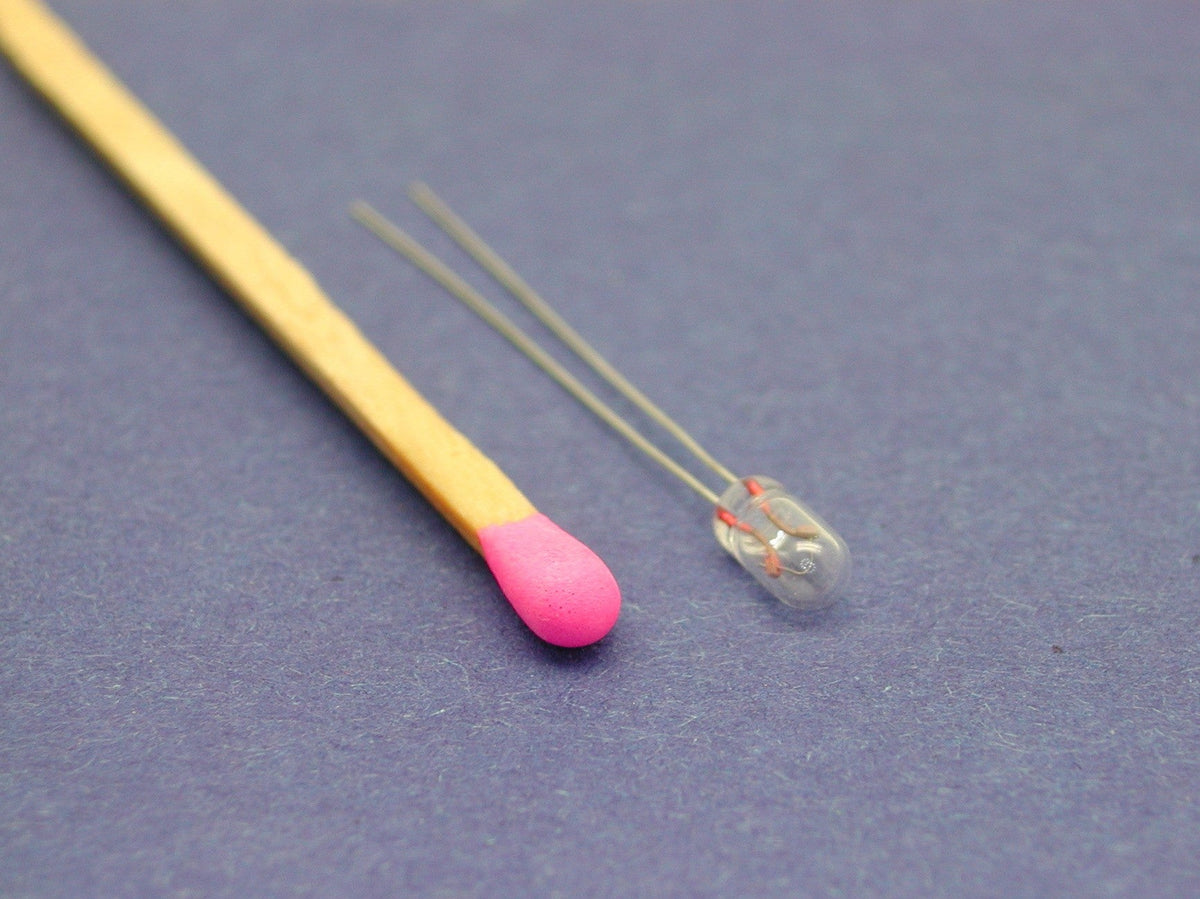

The HSL 5-115, the -115S and the -60 are low cost and reliable IR sources for nondispersive infrared (NDIR) gas detection by IR light absorption, e.g. for gases like CO2 and hydrocarbons. They can be used for wavelengths up to approximately 4.5 µm and they can be operated in DC or AC mode. The -115 and -60 models are plain bulbs, the -115S version has the leads fixed in a small insulator socket.
Also see the Universal Photon Source (UPS) Driver Board as an accessory to your emitter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
HSL 5-115 & - 115S | HSL 5-60 | |
Supply Voltage | 5 Volts | 5 Volts |
Current | 115 +/- 10% mA | 60 +/- 10% mA |
Brightness | 0.15 +/- 25% MSCP | 0.05 +/- 25% MSCP |
Filament | C-2R | C-2R |
Operating Temp. | -20 to 100 C | -20 to 100 C |
Ave. Lifetime | 40,000 hours | 100,000 |
