IR-Si272 Series High Power 30 Watts Steady State 1160C Emitters (-P-1 and -E-1) with Parabolic or Elliptical Reflectors

Item Description

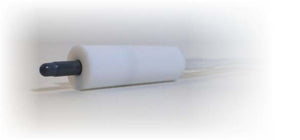

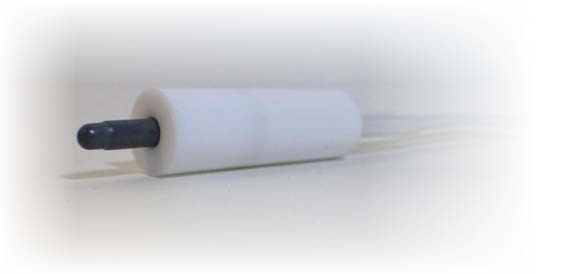

The IR-Si272 is designed for those customers who require higher temperatures and greater output from their infrared source. These emitters are manufactured using a silicon carbide material. The advanced technology ensures a very stable product. Their robust design ensures intrinsic physical and thermal strength. When operated at 6 volts/30 watts the IR-Si272 reaches 1160°C.

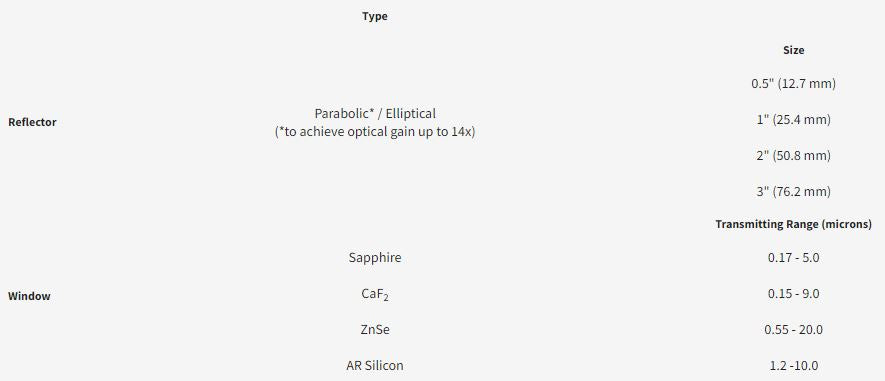

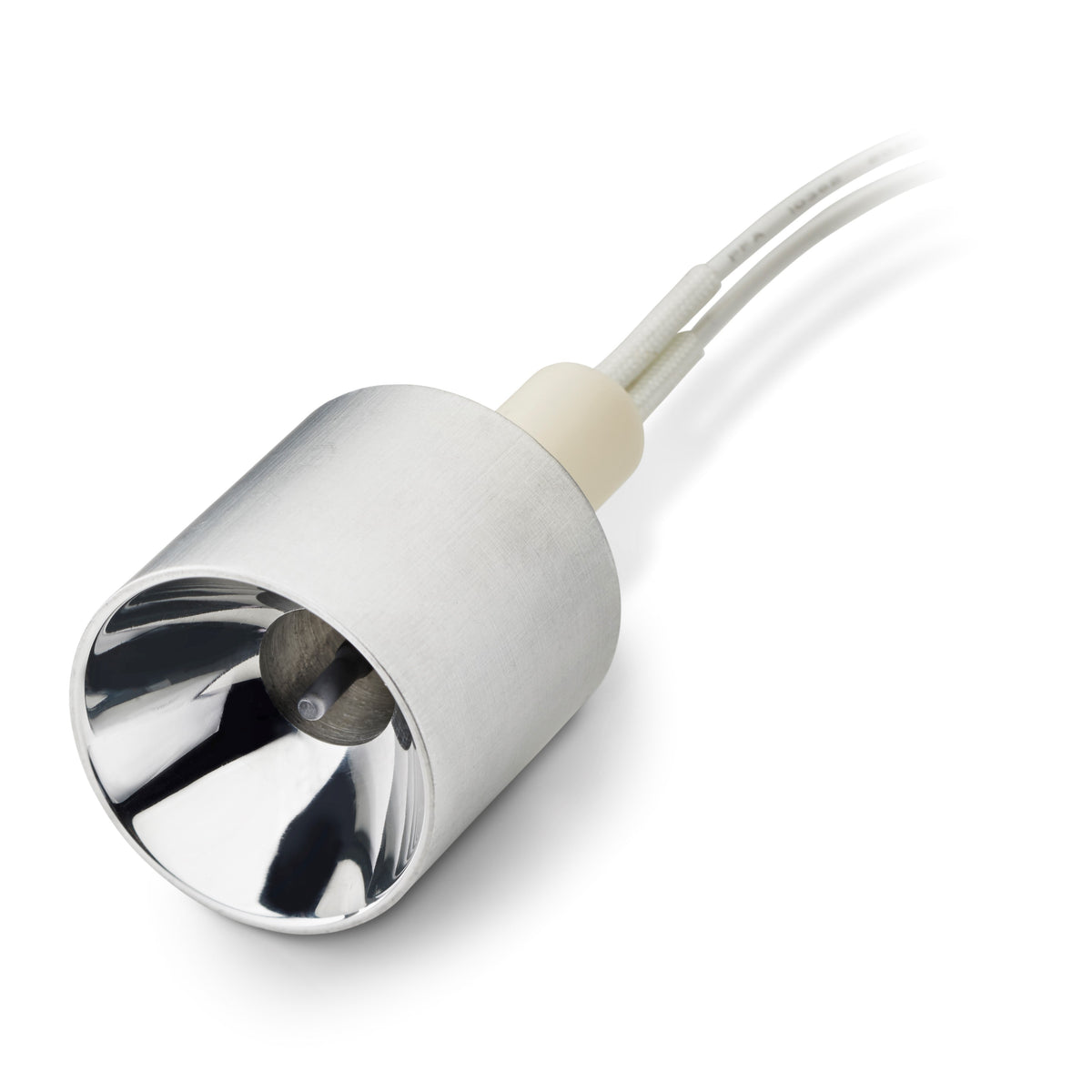

The IR-Si272-P-1 emitters can be optionally mounted in a 1 inch parabolic reflector for extremely efficient collimation of energy. The IR-Si272-E-1 emitters are mounted in a 1 inch elliptical reflector with an external focal point that is 1/2 inch in front of the clear aperture.

Select above either no optics or the P-1 or E-1 optics when purchasing.

Also see the Universal Photon Source (UPS) Driver Board as an accessory to your emitter.

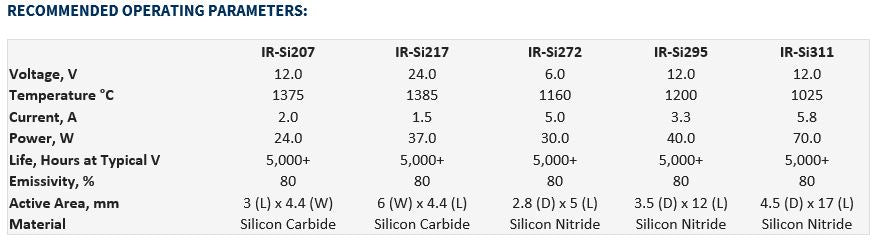

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
