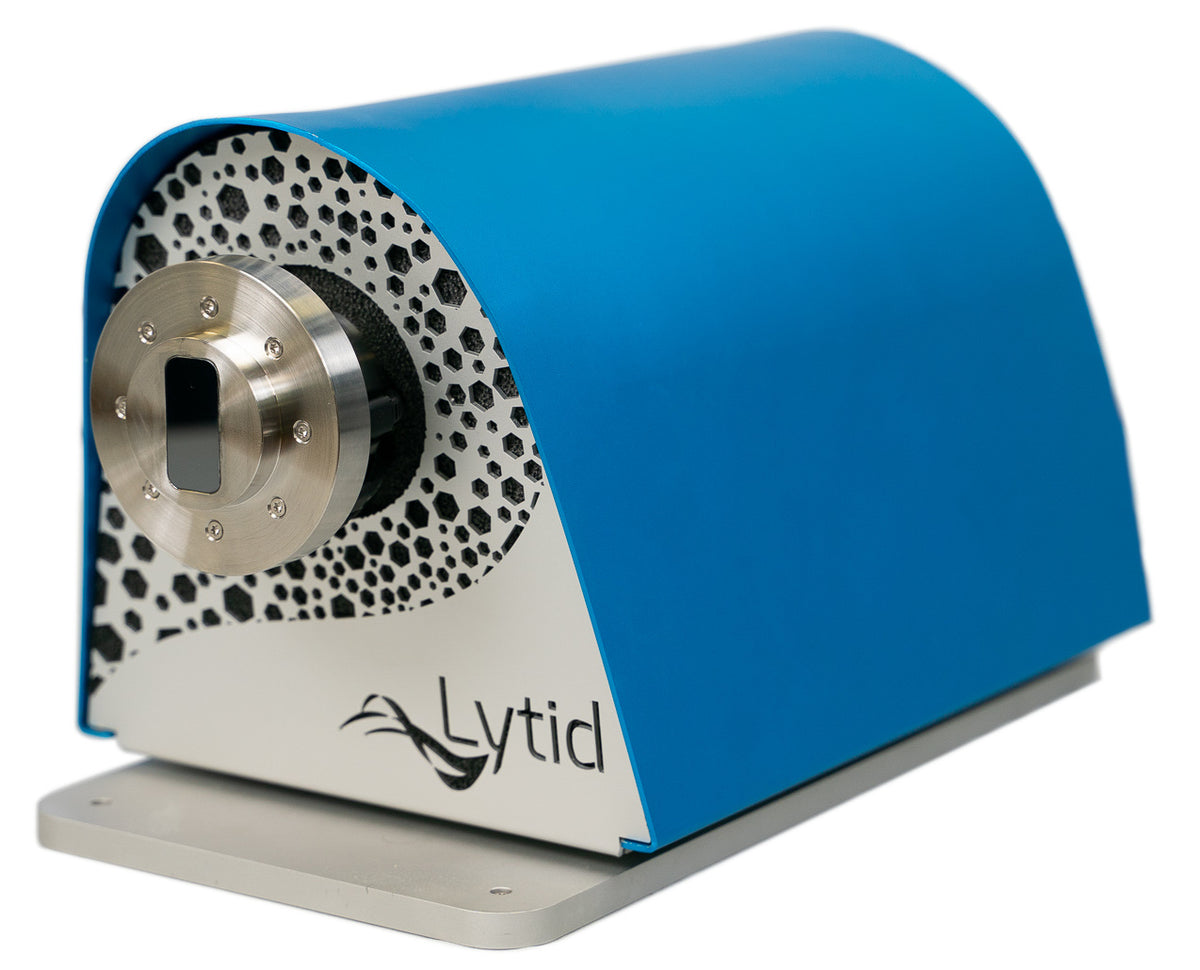

Lytid's award-winning TeraCascade 1000 series now is upgraded! Based on state-of-the art quantum cascade laser technology, TeraCascade 2000 series is the new perfect tool to explore the supra-THz frequency range. It has kept all advantages of former generation: multiple frequency options, powerful output, automatedly-controlled cooling process. In addition, a higher/permanent vacuum level is achieved with the new design, giving rise to a low-maintenance device.

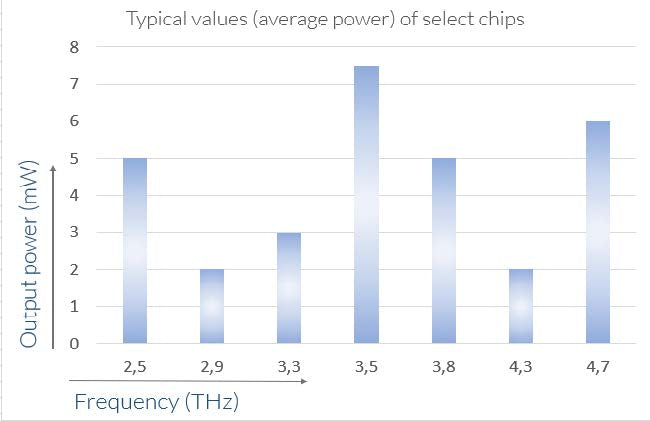

With up to 6 chips at selected frequencies between 2 to 5 THz in one system, TeraCascade 2000 series guarantees average output power of more than 1 milliwatts in CW or QCW for each band. The integrated custom QCL driver provides instantaneous electronic switching between the frequency bands and it is fully programmable with dedicated software to control all input parameter via a USB connection to a PC.
| Optical Data | |
| Frequency bands | Up to six in the range of 2-5 THz |
| Wavelengths |
From 150 to 60mm |
| Average Output |
>1mW |
| Spectrum | Multi-mode or single mode |
| Output beam | ~35 degrees FWHM |
| Options | |
| Vacuum Pump and adapters |
|
| 6-band auto alignment module |
