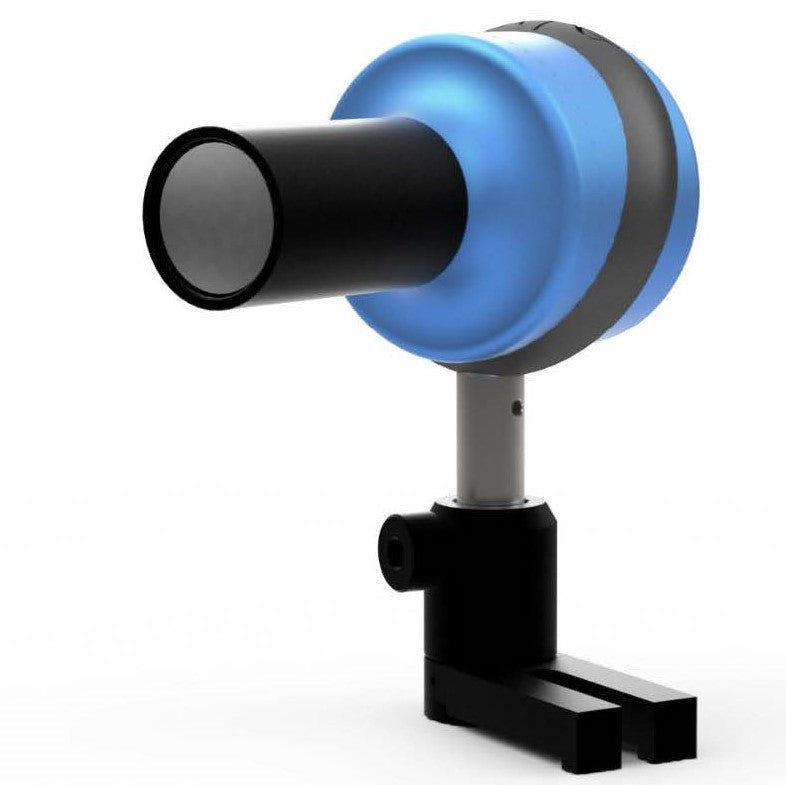

TeraPyro THz pyroelectric sensor

Item Description

The TeraPyro sensor is a compact and highly sensitive device, based on the combination of a high-quality absorbing black coating, paired with a LiTaO3 pyroelectric crystal. The broad absorption range of the coating allows the use of this sensor over a large spectral range (from 0.1 to 30 THz). The high sensitivity and low NEP offer no compromise on performances.  A responsivity switch allows to gain in response time for faster measurements.

The integrated, prealigned, high quality THz optics based on AR coated Si-lenses ensures maximized optical coupling to the sensor.

There are also optional highly modular optics allow three configurations: bare sensor (the base configuration), collimated input or focused input with 50 mm working distance.  Two lens options are available:

Polymer Optics Set - Two 1" dia. polymer lenses for broadband transmission.

Si-HRFZ integrated focusing objective - High-resistivity Si optics, optimized for QCL emission detection (THz range) - Two 1" dia. Lenses (F/1 and F/2) AR coating at working frequency.

    Product Technical Specs

    • Summary product specifications are below
    • View and download the detailed product sheet at the Download PDF tab
    • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
     Optical Data
    Frequency range From 0.1 to 30 THz
    Wavelengths
    From 10 to 3000 um
    Maximum power density
    50 mW/cm²
    Noise equivalent power 1.6 nW/ (Hz)1/2
    Optional Optics Polymer or Si-HRFZ
