Home / UV LEDs - SMD and COB / 255 nm UVC LED - SMD Packages - High and Medium Power
Medium power SMD
High power SMD

255 nm UVC LED - SMD Packages - High and Medium Power

$46.35 - $149.35

Item Description

We offer 255nm UVC LED in SMD packages with medium and high output. See the Tech Specs tab above for a summary table of product features. Select your chosen device at the pull down tab.

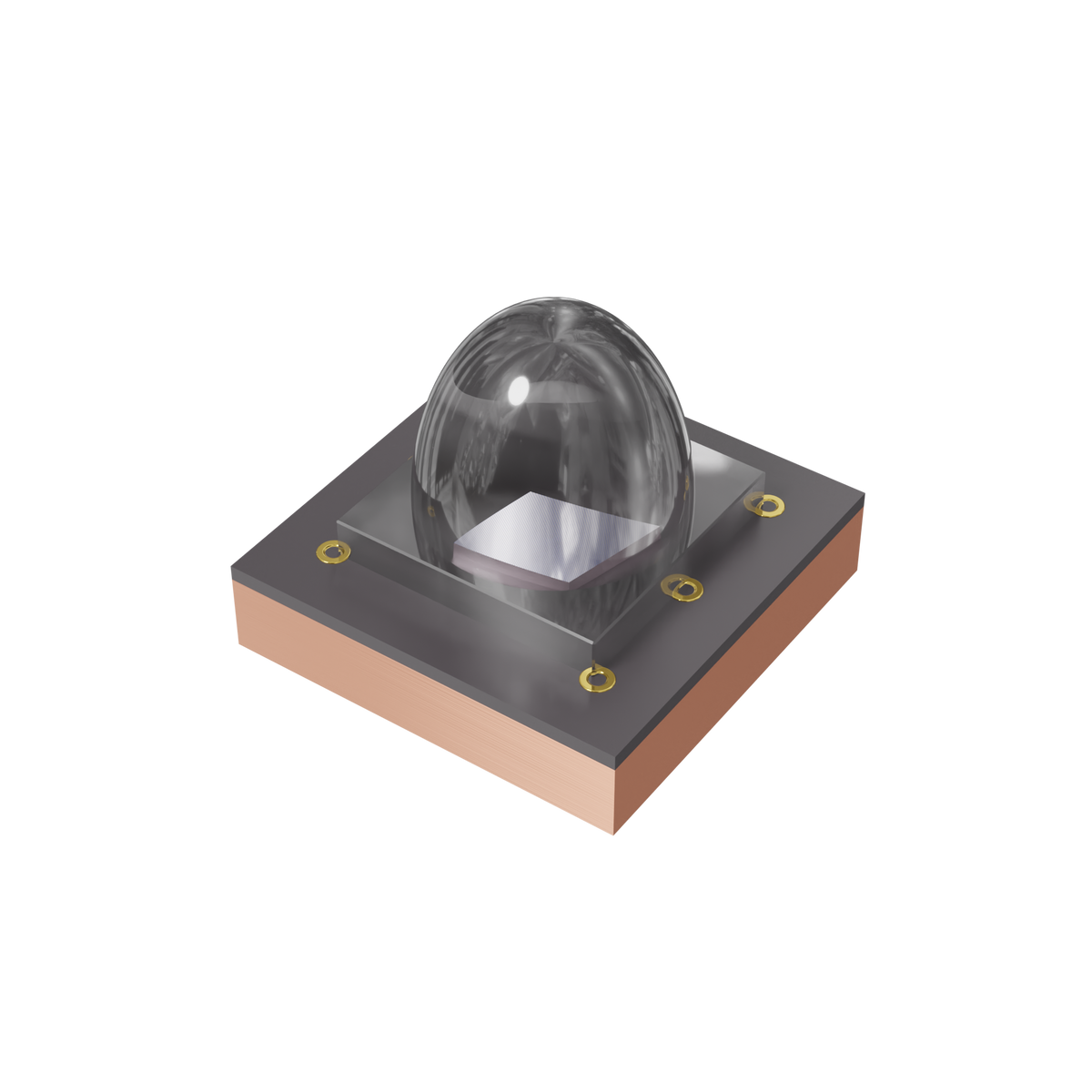

  • Medium power 5.2mm SMD

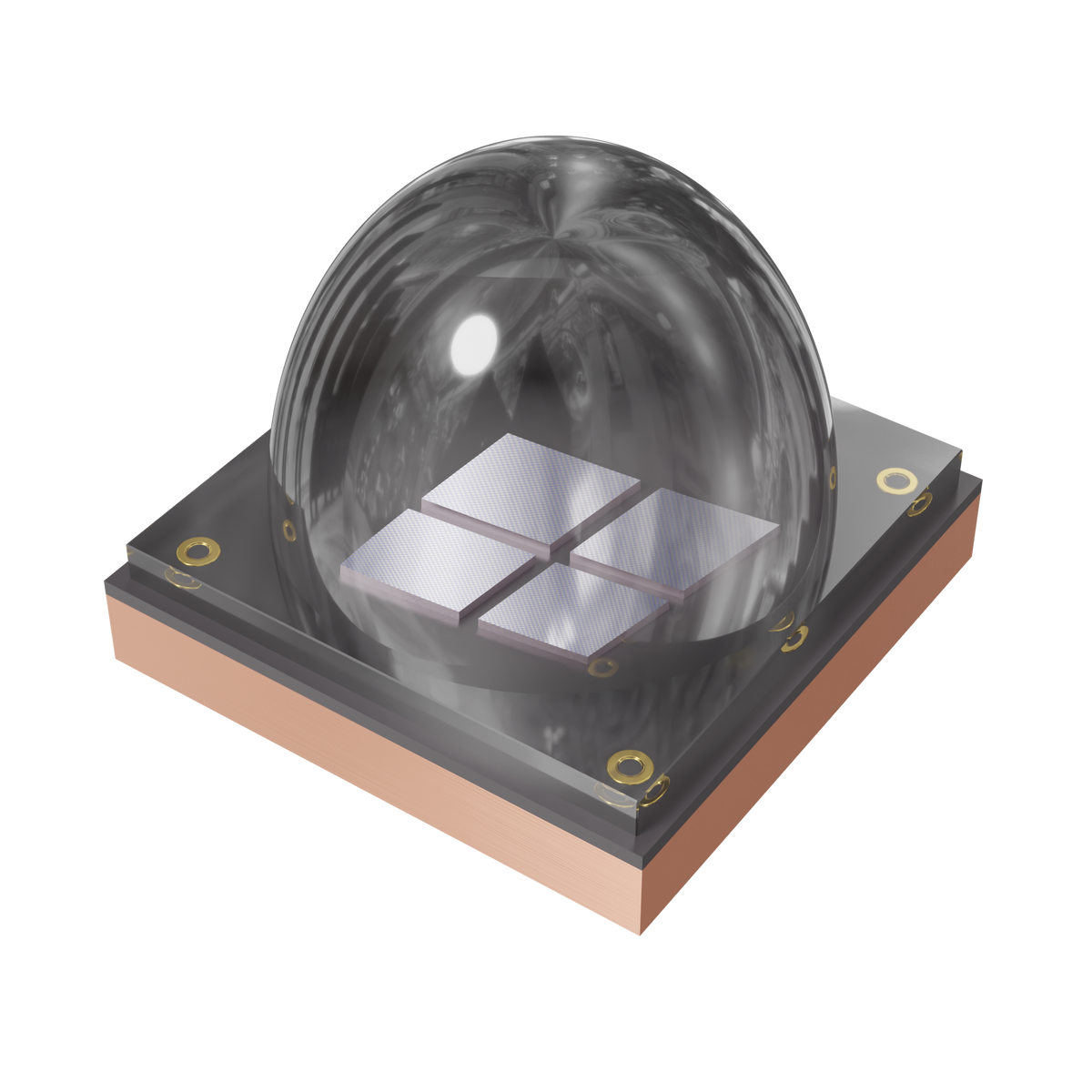

  • High power 7.2mm SMD

SMD are also available in chip-on-board (COB) configurations on the COB pages in the store. Violumas UVC LED have high output and low power consumption.

See the 255nm LED Catalog with device specifications at the Download PDF tab above.

To see the full line of Violumas UV LED that we offer click here.

If you are pulsing your LEDs see the UPS Driver Board for programmable control of your devices.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821

 Medium Power High Power
Power output 51 mW 200 mW
Forward current 500 mA 1000 mA
Forward voltage 5.9 V 11.8
Peak wavelength 255 +/- 5 nm 255 +/- 5 nm
Spectrum FWHM 13 nm 13 nm
Viewing angle (half power) 60 deg. 60 deg.
SMD 5.2 x 5.2 mm 7.2 x 7.2 mm
