395nm UVA LED - SMD Packages - High and Medium Power
We offer 395nm UVA LED in SMD packages with medium and high output. SMD size, power and field of view vary, providing you with multiple product options. See the Tech Specs tab above for a summary table of product features. Select your chosen device at the pull down tab.

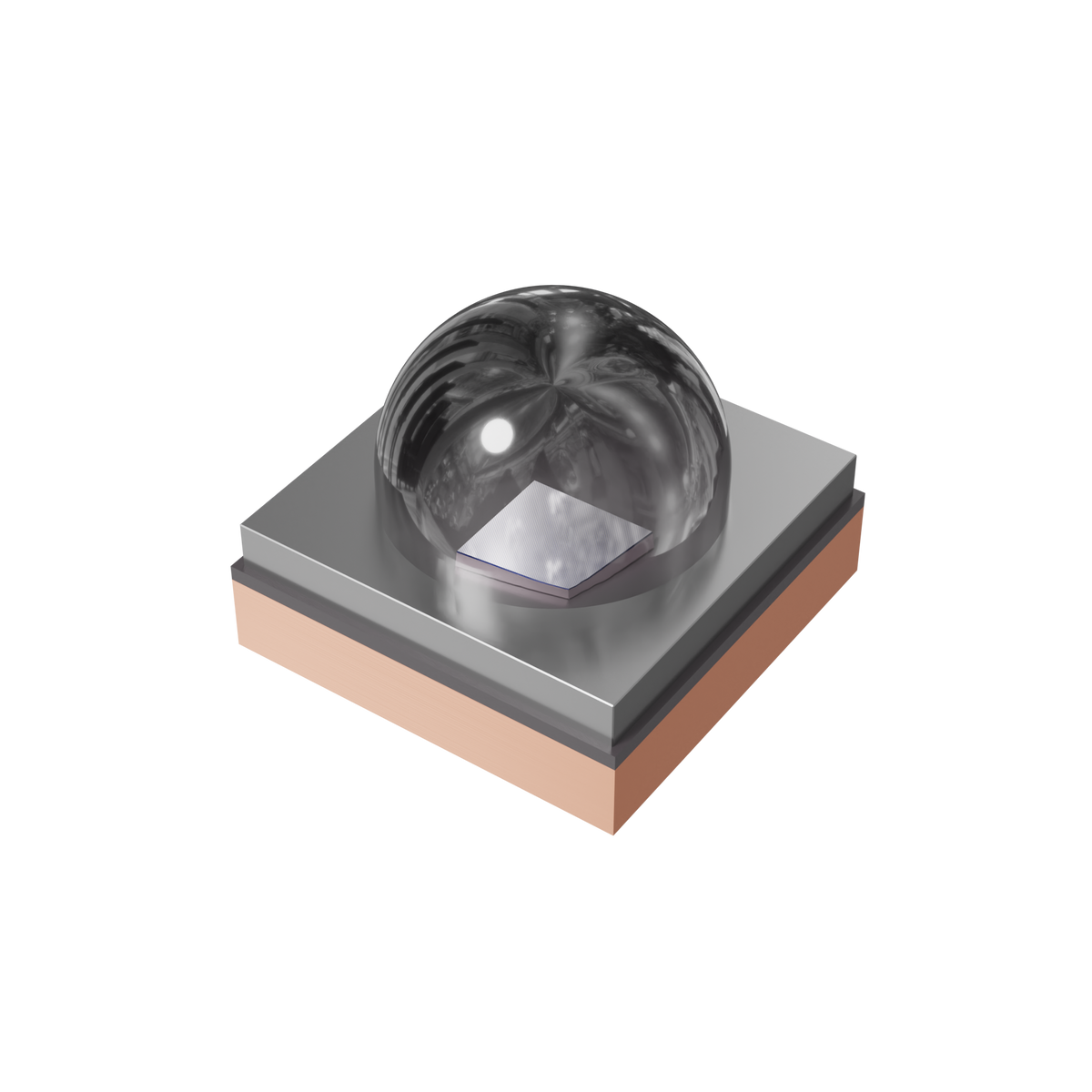

- Medium power 5.2mm SMD

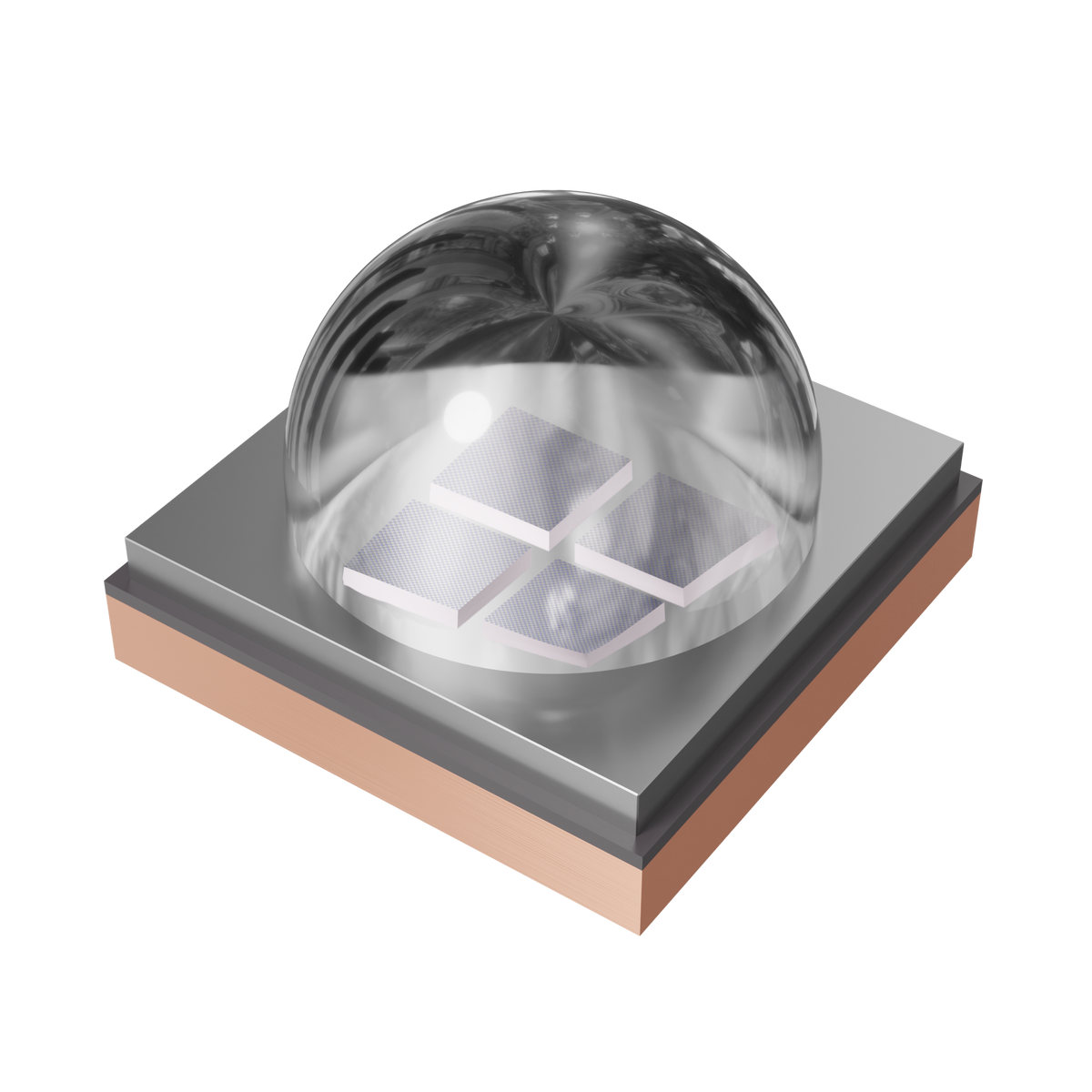

- High power 7.2mm SMD
SMD are also available in chip-on-board (COB) configurations on the COB pages in the store. Violumas UV LED have high output and low power consumption.
See the 395nm LED Catalog with device specifications at the Download PDF tab above. To see the full line of Violumas UV LED that we offer click here.
If you are pulsing your LEDs see the UPS Driver Board for programmable control of your devices.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
|Medium Power SMD||High Power SMD|
|Power output||1280 mW||4700 mW|
|Forward current||700 mA||1400 mA|
|Forward voltage||3.7 V||7.5 V|
|Peak wavelength||395 +/- 5 nm||395 +/- 5 nm|
|Spectrum FWHM||12.0 nm||12.0 nm|
|Viewing angle (half power)||60 deg.||90 deg.|
|SMD||5.2 x 5.2 mm||7.2 x 7.2 mm|
