The new generation of higher power 265 nm LEDs are now available. (35-50% higher).
M3X3L9 Series is a UV LED module comprised of a VC3X3 UV LED COB and a fan-cooled heatsink for a complete, validated product ready for testing and integration. Utilizing the patented 3-PAD LED Flip Chip and Super Pillar MCPCB, the COB array is structured with a high density 9-chip LED array under a single 90° fused silica lens, allowing for focused, high-power illumination.
A specially designed fan-cooled heatsink ensures temperature and performance stability, and an optional LED driver kit (dimmable option) and fan power supply can be provided for a fully equipped system kit.
All M3X3L9 products will be provided with the LED COB mounted onto the heatsink surface (with the application of thermal grease). COB wires will be pre-attached.

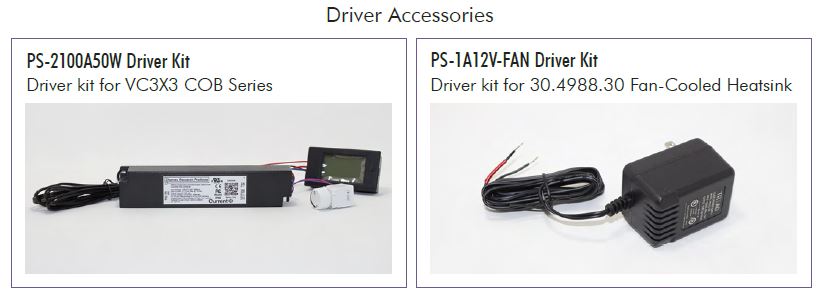

Application Set Option - For a complete plug-and-play Application Set that includes the module and drivers use this link to purchase the Set. The set will include the M3X3 UV LED module,PS-2100A50W Driver Kit for the LED and thePS-1A12V-FAN Driver Kit for the for fan-cooled heatsink, wires, and connectors.
See the Tech Specs tab and Download PDF tab above for the specification and use guides for the M3X3L9 Series
| Module | Description |
| Part number | M3X3L9-265-V1 |
| High Power | 850 mW, 90 degree output |
| Heat Sink | 30.4988.30 (included) |
| Module Dimensions | 83 x 80 x 75 cm |
| Forward Current | 2100 mA |
| Forward Voltage | 18.6 V |
