Home / UV Detectors, Sensors and Probes / SG01L-18 (UV Broadband, 1.00 mm2, TO-18))

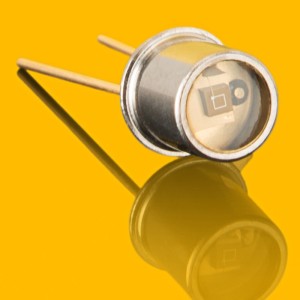

SG01L-18 (UV Broadband, 1.00 mm2, TO-18))
SG01L-18 (UV Broadband, 1.00 mm2, TO-18))
SG01L-18 (UV Broadband, 1.00 mm2, TO-18))

SG01L-18 (UV Broadband, 1.00 mm2, TO-18))

$151.00

Item Description

The SG01L-18 is an extremely versatile high performance SiC detector (1.00 mm2), with broadband spectral response (UVA+UVB+UVC) in a rugged TO-18 package.  The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.13 A/W
Wavelength of max spectral response 280 nm
Broadband - Responsivity range (R=0.1 x Rmax) 221 to 358 nm
Package TO-18
Active area

1.00 mm2
Operating temperature -55 to 170 C
