Home / UV Detectors, Sensors and Probes / SG01L-C18 (UVC, 1.0mm2, TO-18)

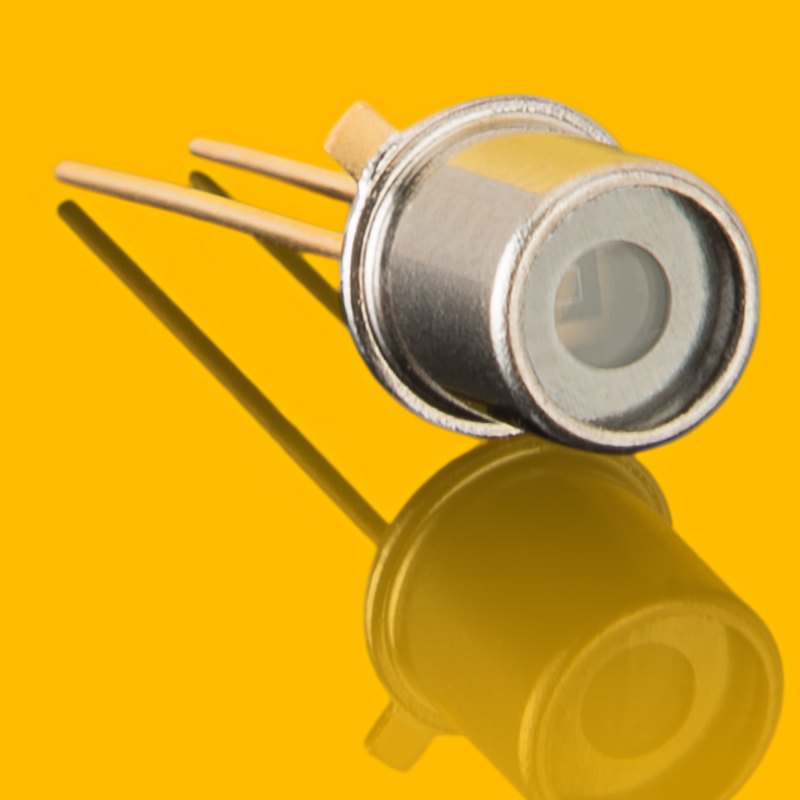

SG01L-C18 (UVC, 1.0mm2, TO-18)

SG01L-C18 (UVC, 1.0mm2, TO-18)

$179.00

Item Description

The SG01L-C18 is a high performance SiC detectors (1.0mm2), with UVC spectral response in a rugged TO-18 package.  The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.12 A/W
Wavelength of max spectral response 275 nm
UVA - Responsivity range (R=0.1 x Rmax) 225 to 287nm
Package TO-18
Active area

1.0 mm2
Operating temperature -55 to 170 C
