Home / UV Detectors, Sensors and Probes / SG03R20-5 (UV Broadband+VUV), 2.0 mm2, TO-5)
SG03R20-5 (UV Broadband+VUV), 2.0 mm2, TO-5)
SG03R20-5 (UV Broadband+VUV), 2.0 mm2, TO-5)
SG03R20-5 (UV Broadband+VUV), 2.0 mm2, TO-5)
SG03R20-5 (UV Broadband+VUV), 2.0 mm2, TO-5)

SG03R20-5 (UV Broadband+VUV), 2.0 mm2, TO-5)

$204.00

Item Description

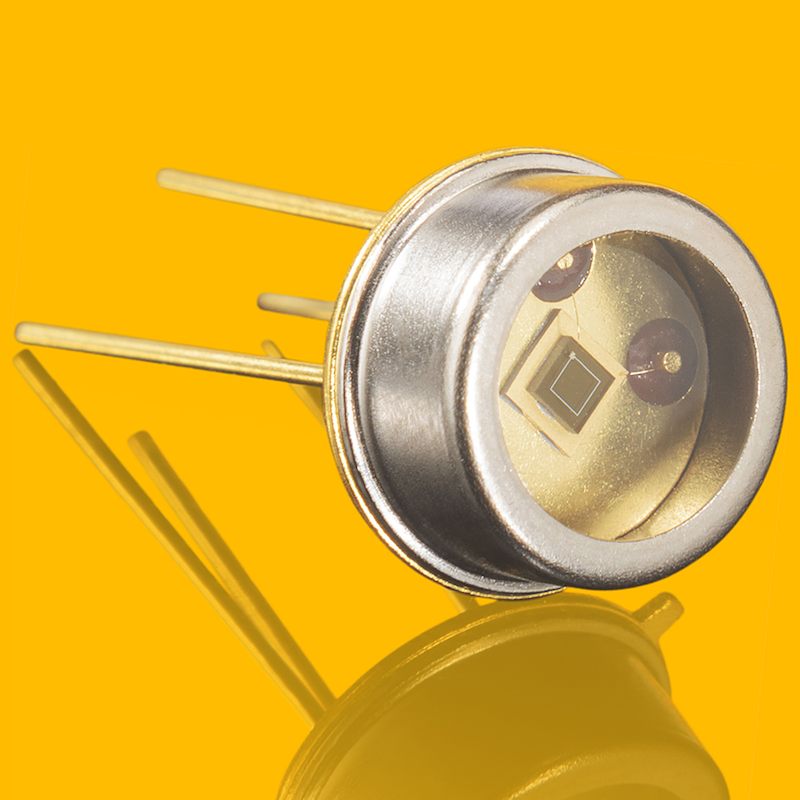

The SG01R20-5 is an extremely versatile high performance SiC detector (round 2.0 mm2), with vacuum UV (VUV) and broadband spectral response (UVA+UVB+UVC) in a rugged TO-5 package.  The SG03 product line is tailored for a wide range of applications that demand UV detection down to wavelengths as low as 170nm. The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments. It is one our most widely used UV photodiodes.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821

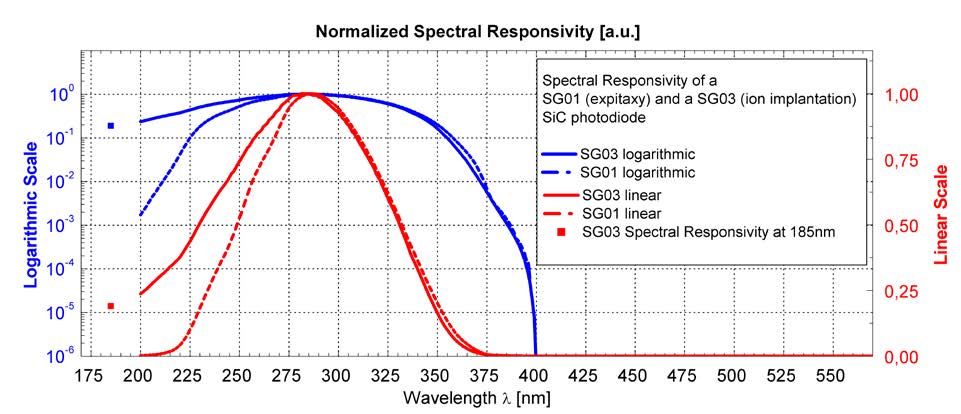

Typical responsivity at peak wavelength 0.13 A/W
Wavelength of max spectral response 280 nm
Broadband - Responsivity range (R=0.1 x Rmax) 170 to 355 nm
Package TO-5
Active area (round)

2.0 mm2
Operating temperature -55 to 170 C
