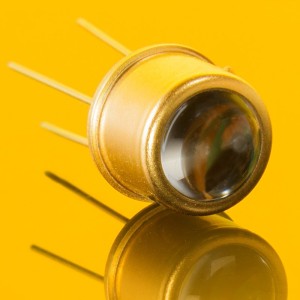

TOCON ABC1 (UV Broadband, pW-nW/cm2, TO-39)
The TOCON ABC1 is a broadband UV sensor containing a high performance SiC UV photodiode and an amplifier that outputs 0-5 V, all in a TO-39 package. The TOCON ABC1 is ideal for low UV signals from the picowatt to nanowatts/cm2 range.
Also consider an optional TOCON Starter Kit. The TOCON Starter Kit is a very convenient and easy way to set up your TOCON, provide supply voltage to the sensor and amplifier and to readout the 0-5 V output signal. The kit contains a socket for your TOCON, 9V battery and battery connector and easy output connection via banana plugs to your voltmeter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
|Minimum wavelength (10%)||227 nm|
|Maximum wavelength (10%)||360 nm|
|Peak wavelength||290 nm|
|Irradiance||1.8 pW/cm2 to 1.8 nW/cm2|
|Supply voltage||2.5 - 5 V|
