TOCON C7 (UVC, uW-mW/cm2, TO-5)

Item Description

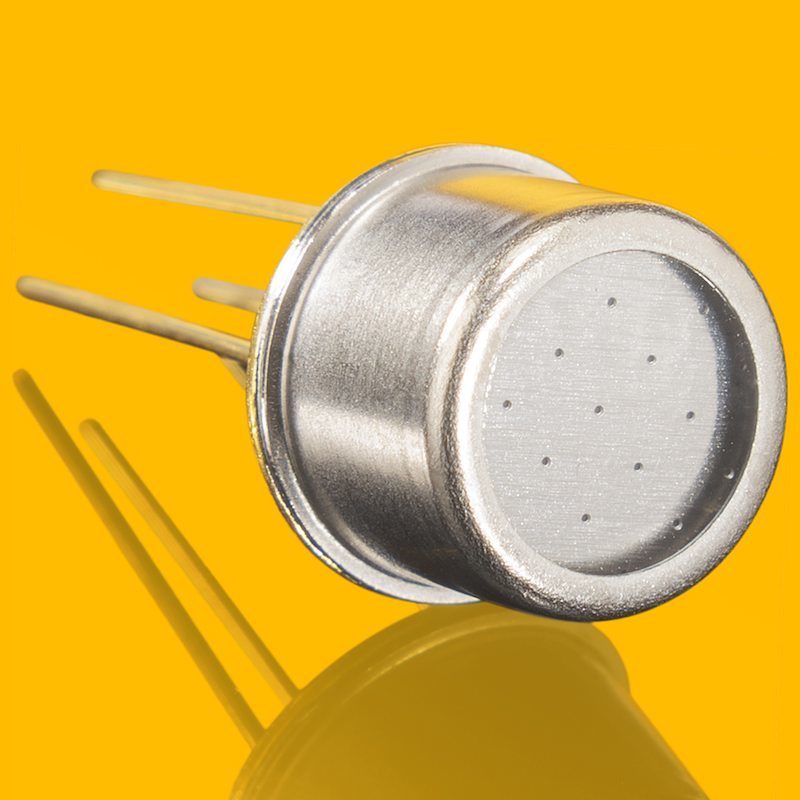

The TOCON C7 is a UVC filtered sensor containing a high performance SiC UV photodiode and an amplifier that outputs 0-5 V, all in a TO-5 package.  The TOCON C7 is ideal for UV signals from the microwatt to milliwatts/cm2 range.

Also consider an optional TOCON Starter Kit. The TOCON Starter Kit is a very convenient and easy way to set up your TOCON, provide supply voltage to the sensor and amplifier and to readout the 0-5 V output signal. The kit contains a socket for your TOCON, 9V battery and battery connector and easy output connection via banana plugs to your voltmeter.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Minimum wavelength (10%) 225 nm
Maximum wavelength (10%) 287 nm
Peak wavelength 275 nm
Irradiance 1.8 uW/cm2 to 18 mW/cm2
Output 0-5 V
Supply voltage 2.5 - 5 V
