TOCON Si10 (Visible Hybrid Sensor)

Item Description

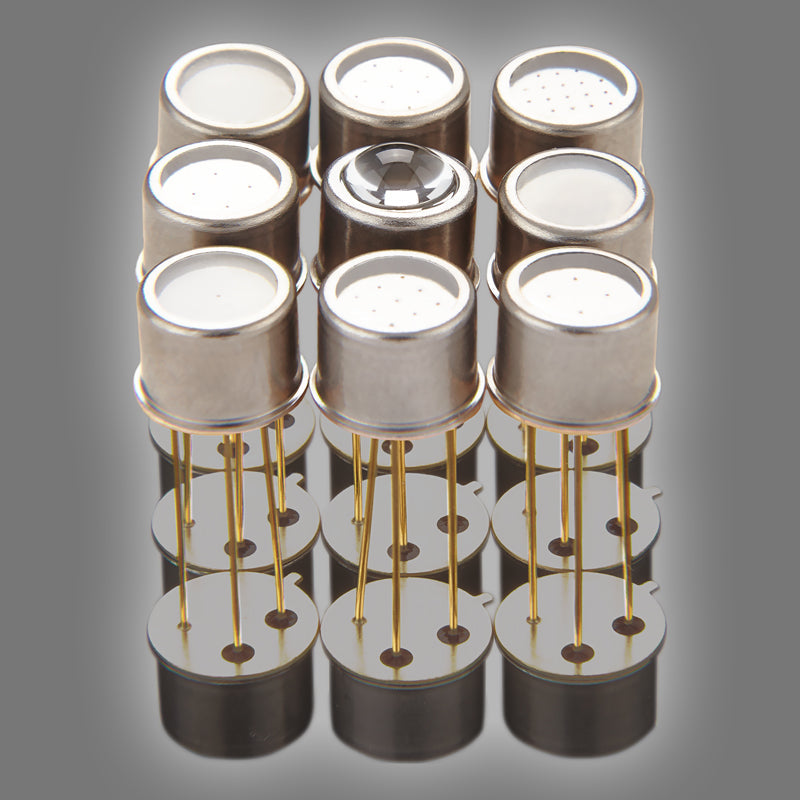

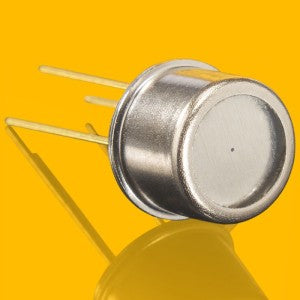

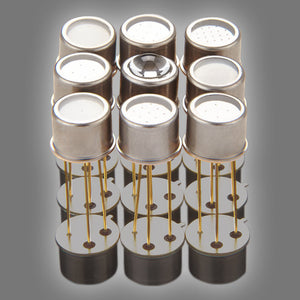

The TOCON Si10 is a broadband visible sensor containing a high performance silicon visible photodiode and an amplifier that outputs 0-5 V, all in a TO-5 package.  The TOCON Si10 is ideal for low visible signals from the milliwatt to Watts/cm2 range.

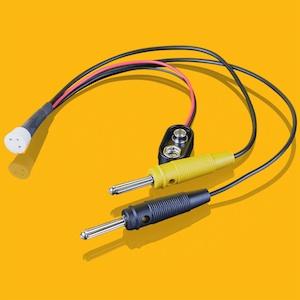

Also consider an optional TOCON Starter Kit. The TOCON Starter Kit is a very convenient and easy way to set up your TOCON, provide supply voltage to the sensor and amplifier and to readout the 0-5 V output signal. The kit contains a socket for your TOCON, 9V battery and battery connector and easy output connection via banana plugs to your voltmeter.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Minimum wavelength (10%) 290 nm
Maximum wavelength (10%) 1010 nm
Peak wavelength 626 nm
Irradiance 1.8 mW/cm2 to 18 W/cm2
Output 0-5 V
Supply voltage 2.5 - 5 V
