Passive Differential Pulse Inverter A-PPI-D

Passive Differential Pulse Inverter A-PPI-D

$116.00 - $165.00

Description
Tech Specs
Download PDF

Item Description

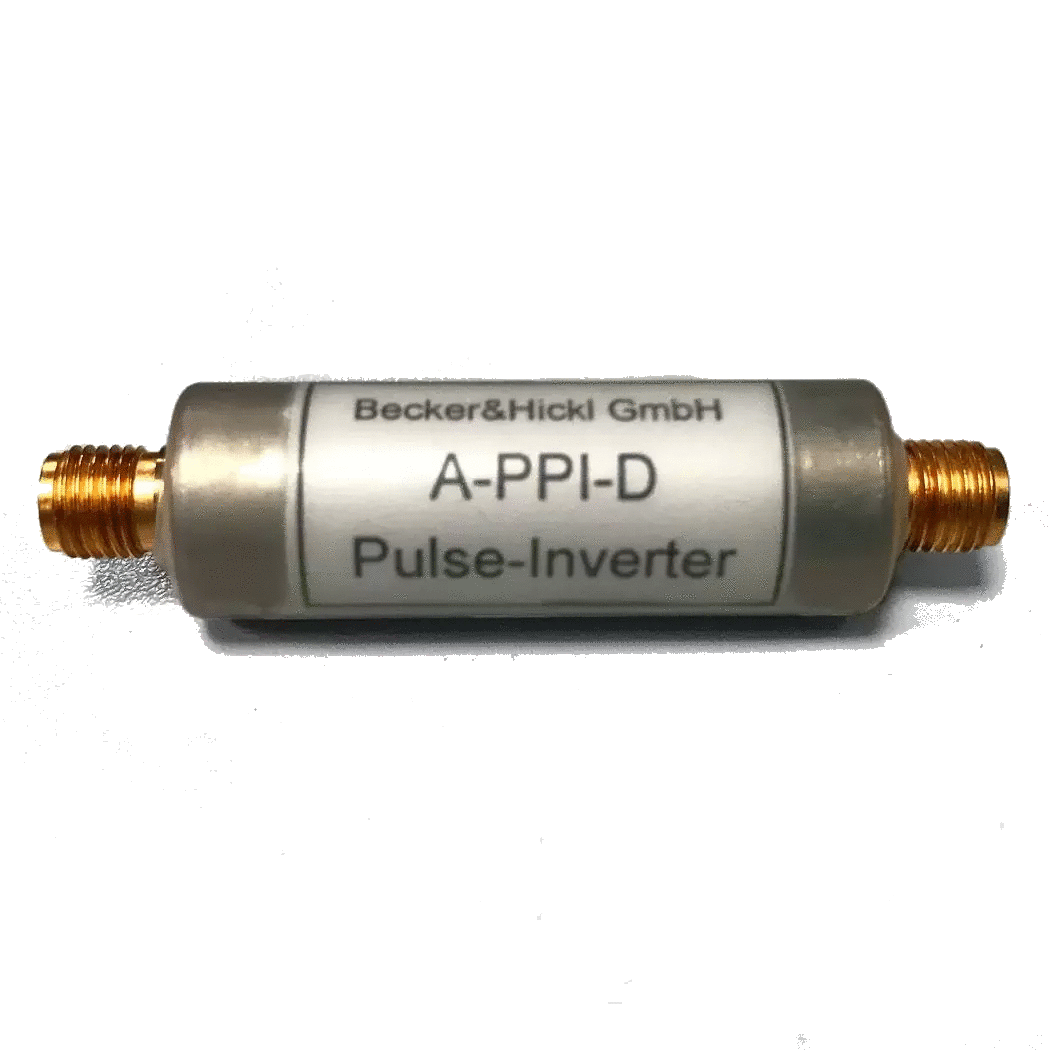

The A-PPI-D from Becker & Hickl is a passive device used to transform positive pulsed signals such as TTL output pulses of detectors or trigger sources into signal pulses suitable for accurate detection with Becker & Hickl TCSPC modules.

Optional 10dB or 20 dB in-line attenuators are also available (A-SMA-10dB and A-SMA-20dB). You can select the A-PPI-D plus attenuator in the pull down product selector above.

Product Technical Specs

Differential pulse-inversion of trigger sources with closed circuits
For trigger signals from pulsed lasers and fast APDs (SPADs)
No power supply required
Offset-drift compensation
Conversion of TTL pulses to negative signals for Becker & Hickl TCSPC modules

Power Supply
Power Supply	Passive
Connector
Input	50 Ohm, SMA female
Output	50 Ohm, SMA female
Pulse Inversion
For Trigger signals from pulsed lasers and fast APDs
Principle	leading or falling edge of incoming trigger pulse is differentiated
Response to short pulses (< 2 ns)	one inverted pulse (only first edge of input pulse is differentiated)
Response to longer pulses (> 2 ns )	bipolar pulse, first peak is inverted to input pulse (differential of first and second edge of input pulse)
