This infrared source is a thermal emitter with an emissivity of ~80%. It is appropriate for use in laboratory or field instrumentation due to its long life and stable properties.
The IR-43 radiating element is an approximately 1.5 micron thin film of precision laser trimmed resistance material which is permanently bonded to a flat substrate of alumina. This contributes to a uniform radiating source and a stable platform. The thin film design results in a low mass of radiation material. The use of this radiating elements is suited for particular applications that do not required high temperature (up to 600 °C).

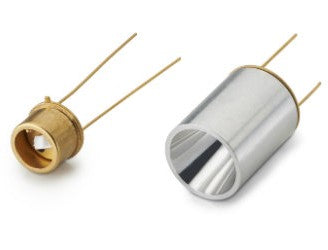

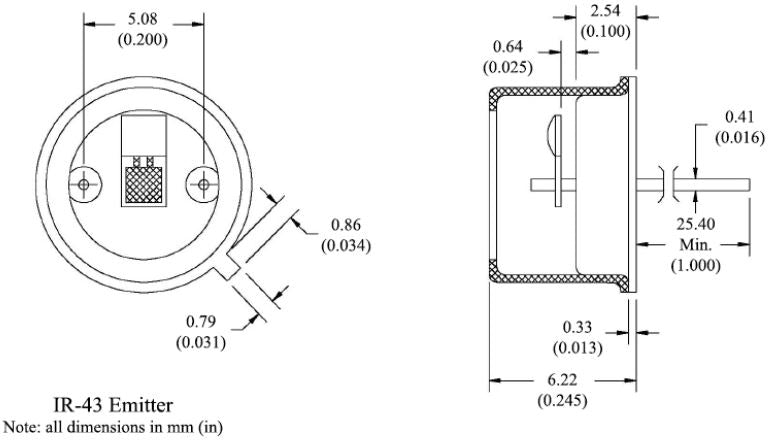

The stable performance of IR-43 makes it one of the best sellers. The unit is free standing on a TO-5 header. Without a directly connected mass to draw of heat, it is very responsive. The unit does not require operation in a sealed atmosphere. IR-43 operates at 600°C with 1.3 watts input.

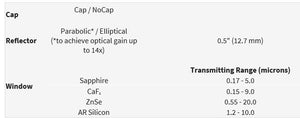

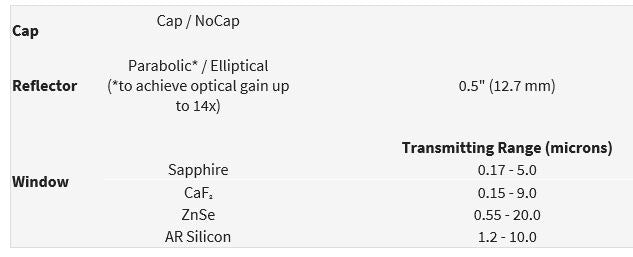

Parabolic (collimation, P-05) and elliptical (focusing, E-05) reflectors are available for the IR-43K.
Contact us about optional windows; Al2O3, CaF2, ZnSe or AR coated Si.
Also see the Universal Photon Source (UPS) Driver Board as an accessory to your emitter.

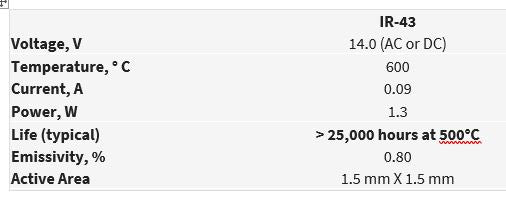

| IR-43 | |
| Temperature (C) | 600 |
| Volts (V) | 14 |
| Current (A) | 0.09 |
| Power (W) | 1.3 |
| Emissivity | 0.8 |
| Lifetime | 25,000 hrs. at 2.5 V |
| Radiating Area (mm) | 1.5 x 1.5 |
