IR-43 1.3 Watts IR Emitters

Item Description

This infrared source is a thermal emitter with an emissivity of ~80%. It is appropriate for use in laboratory or field instrumentation due to its long life and stable properties.

The IR-43 radiating element is an approximately 1.5 micron thin film of precision laser trimmed resistance material which is permanently bonded to a flat substrate of alumina. This contributes to a uniform radiating source and a stable platform. The thin film design results in a low mass of radiation material. The use of this radiating elements is suited for particular applications that do not required high temperature (up to 600 °C).

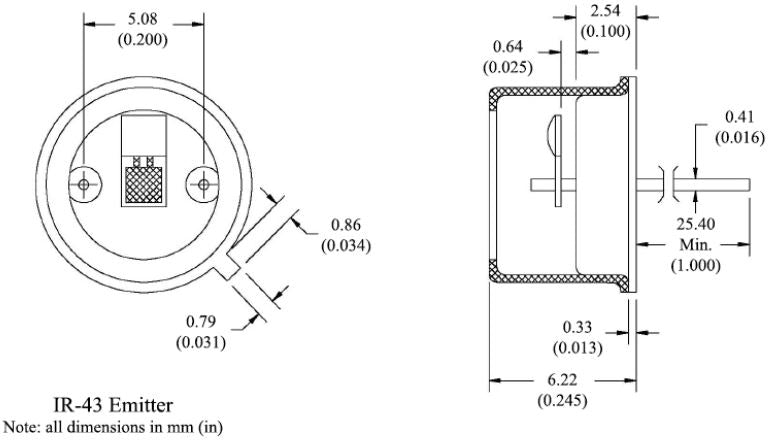

The stable performance of IR-43 makes it one of the best sellers. The unit is free standing on a TO-5 header. Without a directly connected mass to draw of heat, it is very responsive. The unit does not require operation in a sealed atmosphere. IR-43 operates at 600°C with 1.3 watts input.

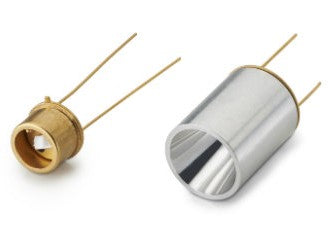

Parabolic (collimation, P-05) and elliptical (focusing, E-05) reflectors are available for the IR-43K.

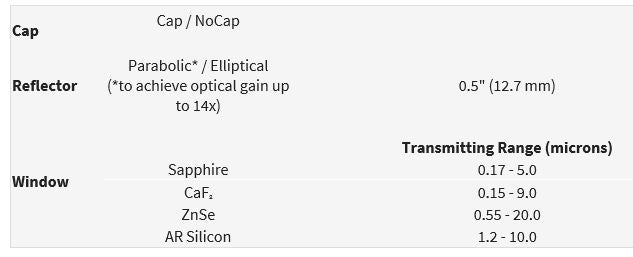

Contact us about optional windows; Al2O3, CaF2, ZnSe or AR coated Si.

Also see the Universal Photon Source (UPS) Driver Board as an accessory to your emitter.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821

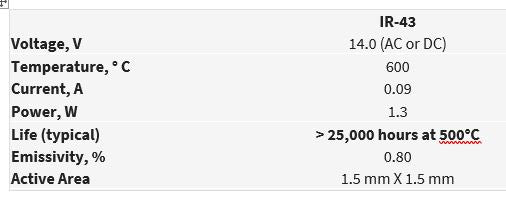

Temperature (C) 600
Volts (V) 14
Current (A) 0.09
Power (W) 1.3
Emissivity 0.8
Lifetime 25,000 hrs. at 2.5 V
Radiating Area (mm) 1.5 x 1.5
