IR-70 and IR-75 1 Watt Pulsable IR Emitters TO-5
Regular price
$75.00
Item Description
The HawkEye IR-7x Series is a MEMS technology pulsable infrared emitter. This source is based on patented technology. Due to its low thermal mass, the IR-7x Series can be pulsed at frequencies up to 70+ hertz with good modulation depth (contrast between the on and off states).

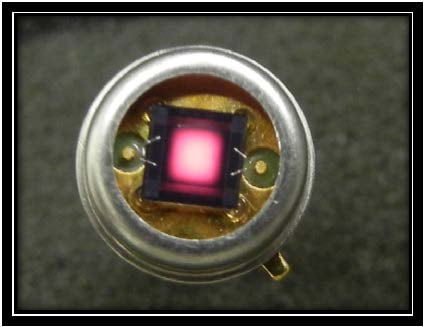

The IR-70, mounted in a TO-39 header with a windowless cap provides the smallest package and gives the widest output energy beam. FWHM (full width at half max) for the IR-70 is 100°.

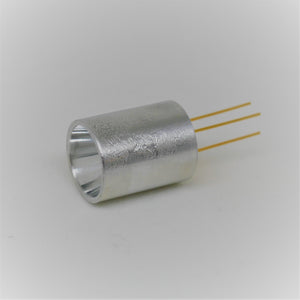

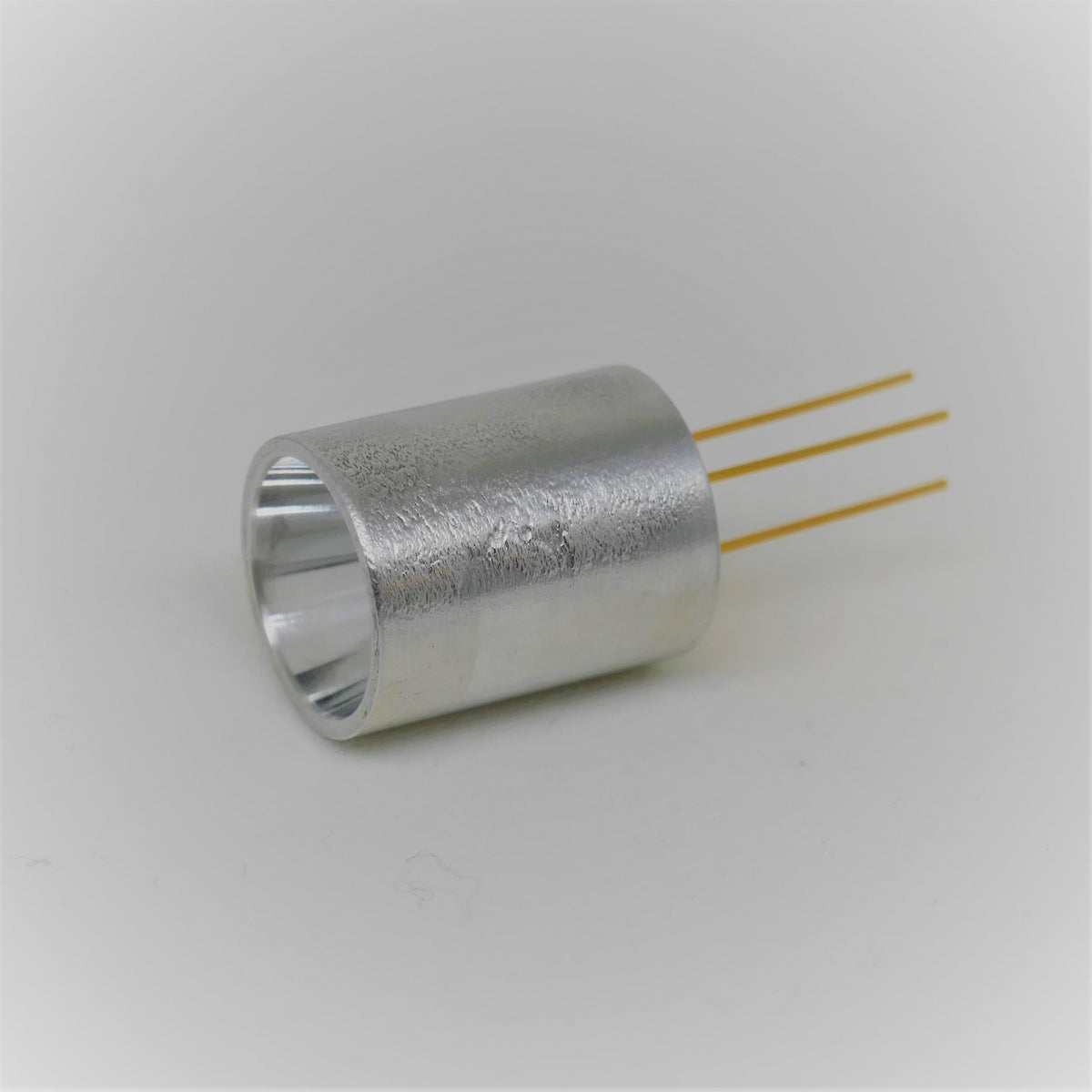

The IR-75 is an IR-70 emitter with a collimating optic to provide approximately 15x the on-axis output. FWHM (full width at half max) for the IR-75 is 15°.
Also see the Universal Photon Source (UPS) Driver Board as an accessory to your emitter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
| IR-70 | IR-75 | |
| Active Area (mm) | 2.2 x 2.4 | 2.2 x 2.4 |
| Typical Operating Temperature |
450°C to 750°C | 450°C to 750°C |
| Drive Voltage at 750°C | 6.0 +/- 0.4 volts | 6.0 +/- 0.4 volts |
| Frequency at 50% Modulation Depth (25% Duty Cycle) |
70Hz | 70 Hz |
| Package | TO‐39 with cap | parabolic optic |
| Angular Output‐‐FWHM | 100° | 15° |
