IR-Si207 Series High Power 24 Watts Steady State 1375C Emitters (-P-1 and -E-1) with Parabolic or Elliptical Reflectors
Item Description

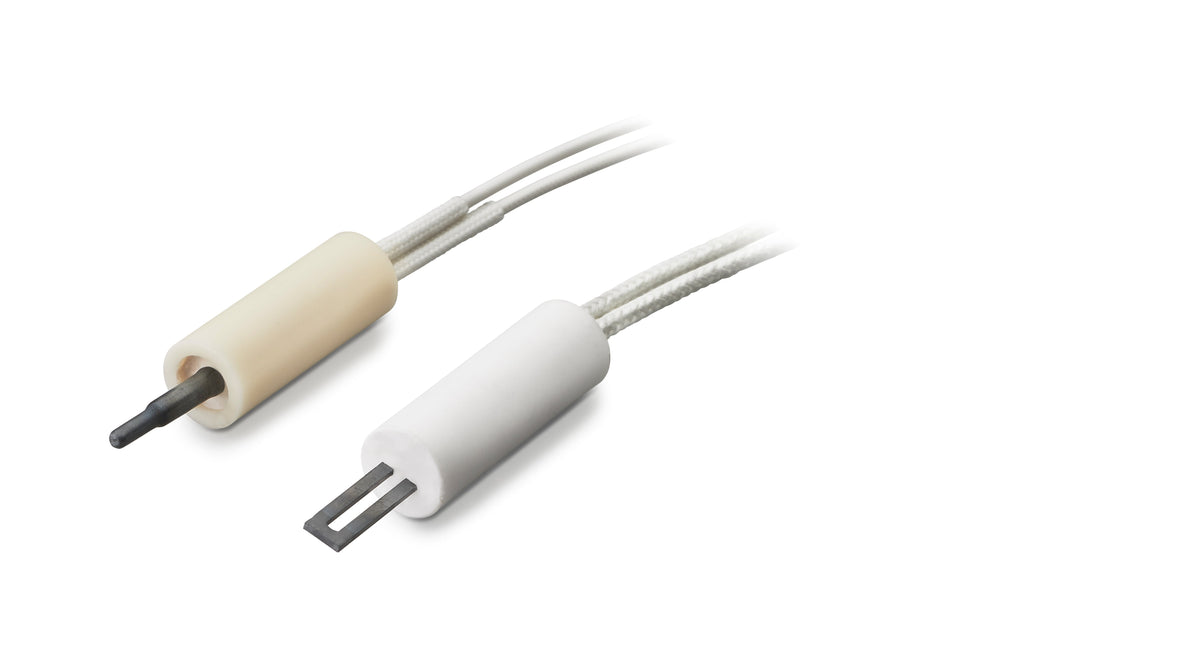

The IR-Si207 Series is designed for those customers who require higher temperatures and greater output from their infrared source. These emitters are manufactured using a silicon carbide material. The advanced technology ensures a very stable product. Their robust design ensures intrinsic physical and thermal strength. When operated at 12 volts/24 watts the IR-Si207 reaches 1375°C.

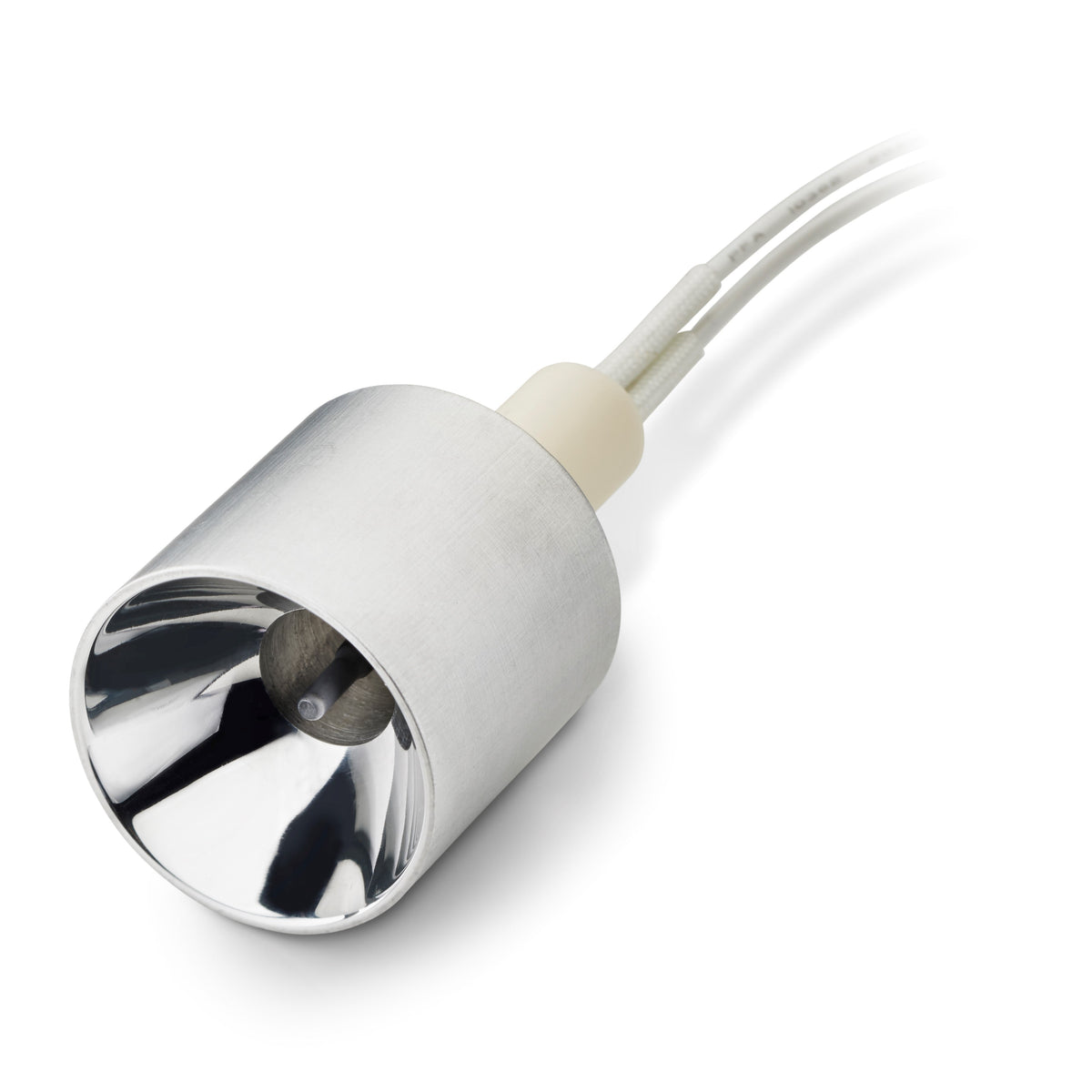

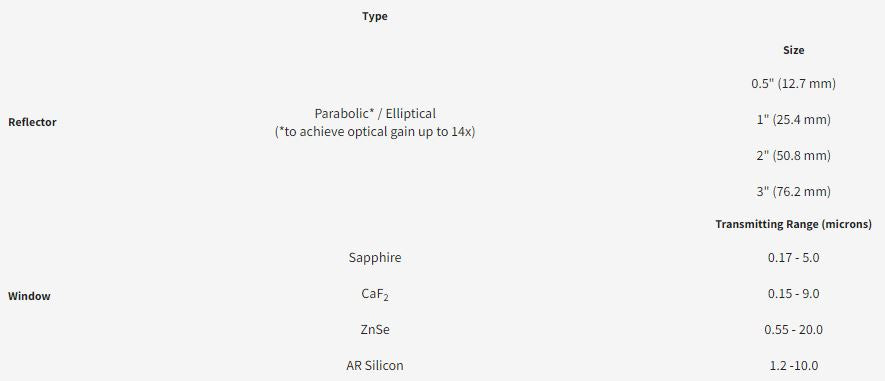

The IR-Si207-P-1 emitters are mounted in a 1 inch parabolic reflector for extremely efficient collimation of energy. The IR-Si207-E-1 emitters are mounted in a 1 inch elliptical reflector with an external focal point that is 1/2 inch in front of the clear aperture.
Select above either the P-1 or E-1 optics when purchasing.
Also see the Universal Photon Source (UPS) Driver Board as an accessory to your emitter.
Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our contact request page or at 617-566-3821

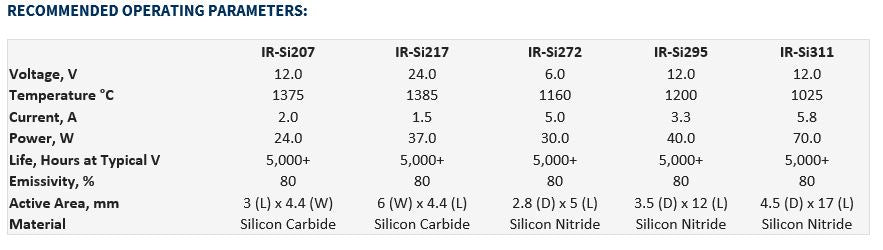

IR-Si207 | |
Temperature (C) | 1375 |
Volts (V) | 12.0 V (AC or DC) |
Current (A) | 2.0 |
Power (W) | 24 |
Active Area (mm) | 3.0 x 4.4 |
Lifetime (typical) | >5,000 hrs. @ 12 V |
