Home / UV Detectors, Sensors and Probes / SG01S-18ISO90 (UV Broadband, 0.06 mm2, TO-18)
SG01S-18ISO90 (UV Broadband, 0.06 mm2, TO-18)
SG01S-18ISO90 (UV Broadband, 0.06 mm2, TO-18)
SG01S-18ISO90 (UV Broadband, 0.06 mm2, TO-18)

SG01S-18ISO90 (UV Broadband, 0.06 mm2, TO-18)

$45.00

Item Description

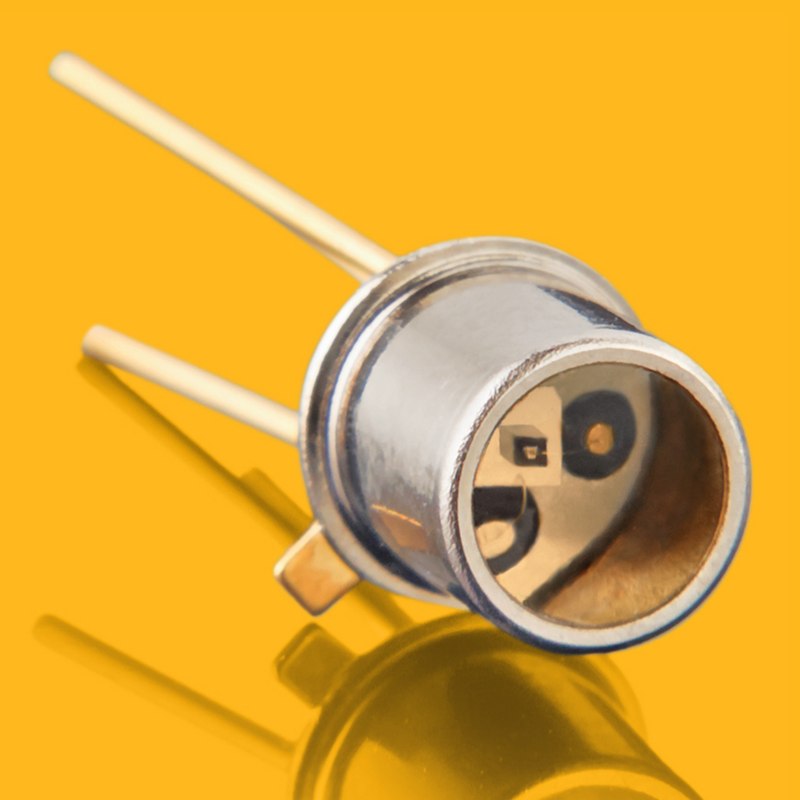

The SG01S-18ISO is an extremely versatile high performance SiC detector (0.06mm2), with broadband spectral response (UVA+UVB+UVC) in a rugged TO-18 package.  The ISO90 is a three pin package with the third pin for optional grounding of the case. The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments. It is one our most widely used UV photodiodes.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.13 A/W
Wavelength of max spectral response 280 nm
Broadband - Responsivity range (R=0.1 x Rmax) 221 to 358 nm
Package TO-18 3-pin
Active area

0.06mm2
Operating temperature -55 to 170 C
