Home / UV Detectors, Sensors and Probes / SG01S-18S (UV Broadband , 0.06 mm2, TO-18 with Short Cap)
SG01S-18S (UV Broadband , 0.06 mm2, TO-18 with Short Cap)
SG01S-18S (UV Broadband , 0.06 mm2, TO-18 with Short Cap)
SG01S-18S (UV Broadband , 0.06 mm2, TO-18 with Short Cap)

SG01S-18S (UV Broadband , 0.06 mm2, TO-18 with Short Cap)

$31.00

Item Description

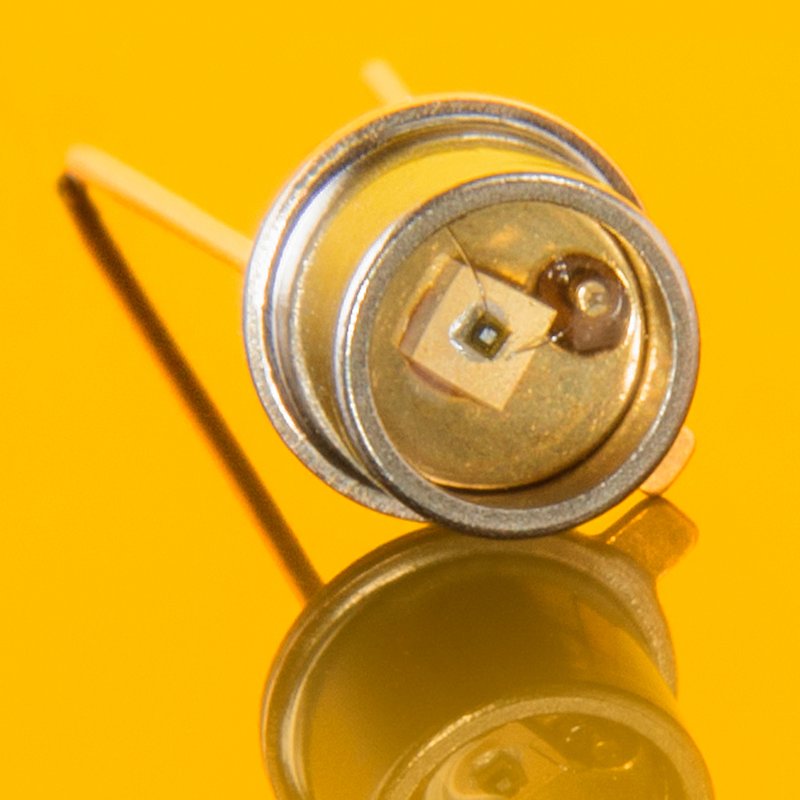

The SG01S-18S is an extremely versatile high performance SiC detector (0.06mm2), with broadband spectral response (UVA+UVB+UVC) in a rugged TO-18 package.  The -18S has a shorter cap height (3.7 mm) than the standard  - 18 part (5.6 mm).

The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments. It is one our most widely used UV photodiodes.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.13 A/W
Wavelength of max spectral response 280 nm
Broadband - Responsivity range (R=0.1 x Rmax) 221 to 358 nm
Package TO-18
Cap height 3.7 mm
Active area

0.06mm2
Operating temperature -55 to 170 C
