SG01S-C5 (UVC, 0.06 mm2, TO-5)
SG01S-C5 (UVC, 0.06 mm2, TO-5)
Boston Electronics

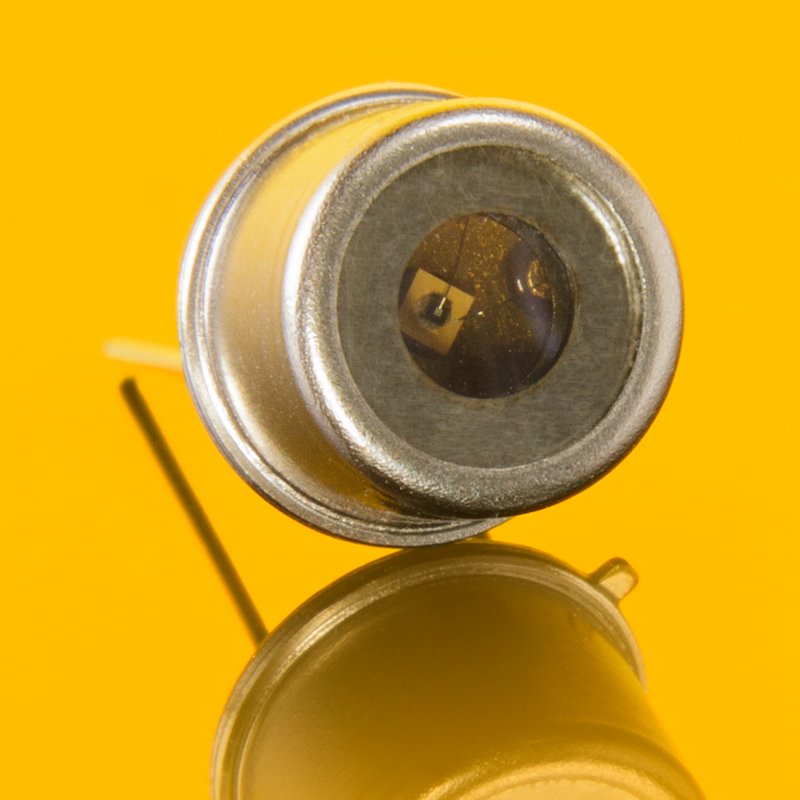

SG01S-C5 (UVC, 0.06 mm2, TO-5)

$62.00 $0.00

Item Description

The SG01S-C5 is a high performance SiC detectors (0.06mm2), with UVC spectral response in a rugged TO-5 package.  The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.12 A/W
Wavelength of max spectral response 275 nm
UVC - Responsivity range (R=0.1 x Rmax) 225 to 287nm
Package TO-5
Active area

0.06mm2
Operating temperature -55 to 170 C
