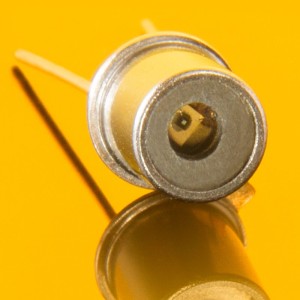

SG01S-C18-LED - 275 nm LED Detector (UVC, 0.06mm2, TO-18)
SG01S-C18-LED - 275 nm LED Detector (UVC, 0.06mm2, TO-18)

SG01S-C18-LED - 275 nm LED Detector (UVC, 0.06mm2, TO-18)

$68.00

Item Description

The SG01S-C18-LED is a high performance SiC detectors (0.06mm2), with UVC spectral response in a rugged TO-18 package.  The spectral response is tailored for detection of 275 nm LEDs. The SiC detector is hardened to UV radiation, thus ensuring long life and stable performance in high UV dose environments.

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
Typical responsivity at peak wavelength 0.12 A/W
Wavelength of max spectral response 285 nm
UVC - Responsivity range (R=0.1 x Rmax) 225 to 298 nm
Package TO-18
Active area

0.06mm2
Operating temperature -55 to 170 C
