80 um InGaAs Avalanche Photodiode - APD (Ain-080-04-01 Type 4)

Item Description

This detector is a low-noise InGaAs Avalanche Photodiode (APD) Type 4 with spectral response from 950 –1650 nm.  Type 4 is a cost-efficient alternative to the higher performing type 5, while providing sufficient gain for many applications.  Applications include ranging, LIDAR, test & measurement, laser engineering, medical, telecom and datacom.

Features

• 80 um active area diameter
• Low noise (1nA typ.)

• Small Capacitance = 0.4 pF at M = 10

• High gain (M = 10 - 20)

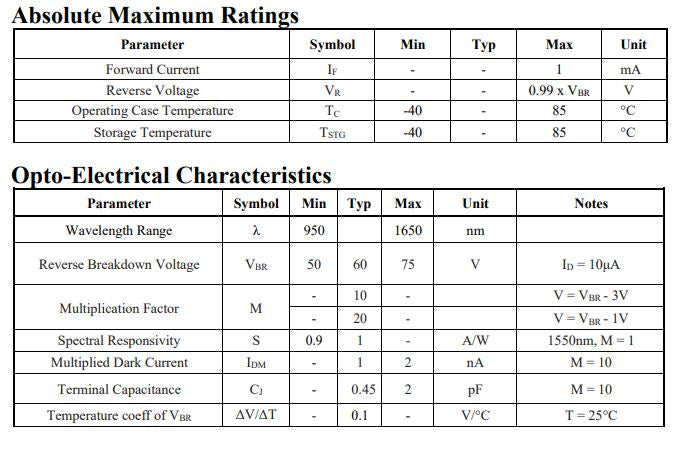

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
