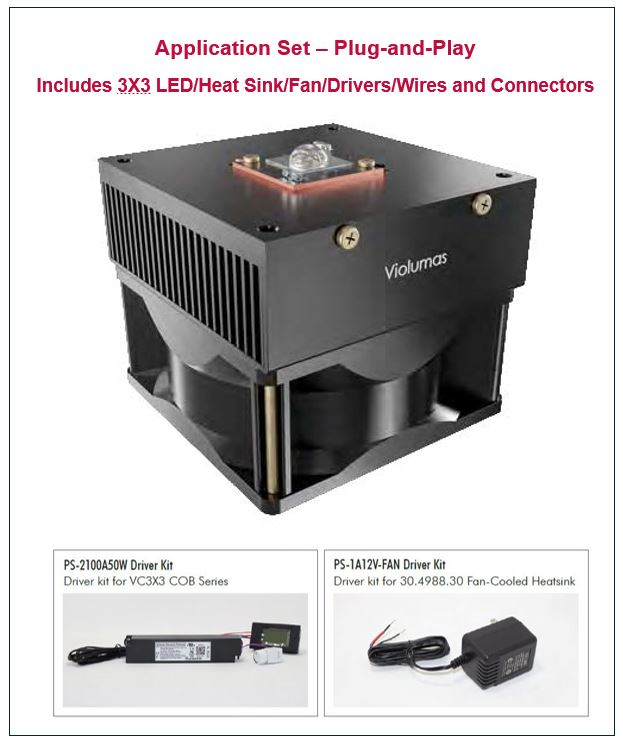

295nm 3X3 Array UV LED Application Set- High Power LED, Heat Sink, and Drivers

Item Description

Plug-and-Play UV LED Application Set - Includes M3X3L9 integrated module (LED array and heat sink) and driver kits (includes power supplies, plug, connector and wires).   No need to search for and purchase separate components.  Everything is in the box to quickly be up and running with instructions.

Select 110V or 220V in pull down box above.

This set (SET-295-3X3-MED-110V or -220V) contains the items below. See the Tech Specs tab and Download PDF tab above for the specification and use guides for the items in the sets:

  • M3X3L9-295 Integrated Module - 295 nm 3X3 Array COB  (720 mW, 90 deg. output) mounted onto a matched heat sink with fan
  • LED Driver kit for 110V or 220V - PS-2100A50W-ND-110 or 220  with plug, connectors and wires
  • Fan Driver Kit for heat sink fan PS-1A12V-FAN

Product Technical Specs

  • Summary product specifications are below
  • View and download the detailed product sheet at the Download PDF tab
  • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821

Items in Set: (SET-295-3X3-110V or -220V)

Item Part Number
Integrated M3X3L9-295 Module

VC3X3C48L9-295  675 mW, 90 deg. output mounted onto the30.4988.30 Heat Sink with fan

LED Driver kit for 110V (220V) PS‐2100A50W‐ND-110V (220V) with plug, connectors and wires
Driver kit for Fan PS‐1A12V-FAN with plug and wires
