80 um InGaAs Avalanche Photodiode - APD (Ain-080-05-01 Type 5)

Item Description

This detector is a low-noise InGaAs Avalanche Photodiode (APD) Type 5 with spectral response from 1000 –1630 nm.  Type 5 is the gold standard in the ranging and LIDAR industry, providing high gains and low noise operation. Applications include ranging, LIDAR, test & measurement, laser engineering, medical, telecom and datacom.

Features

• 80 um active area diameter
• Excellent linearity
• High power handling (0dBm)
• High gain (M = 10 - 20)
• Operating voltage 8V below breakdown

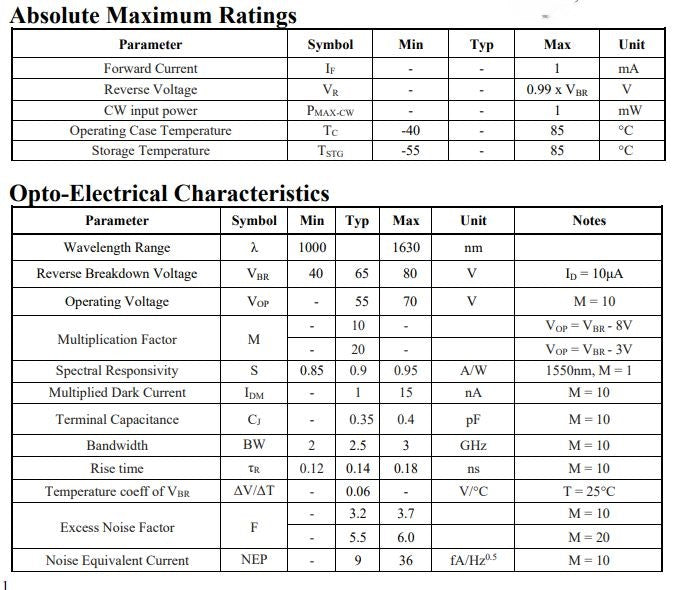

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
