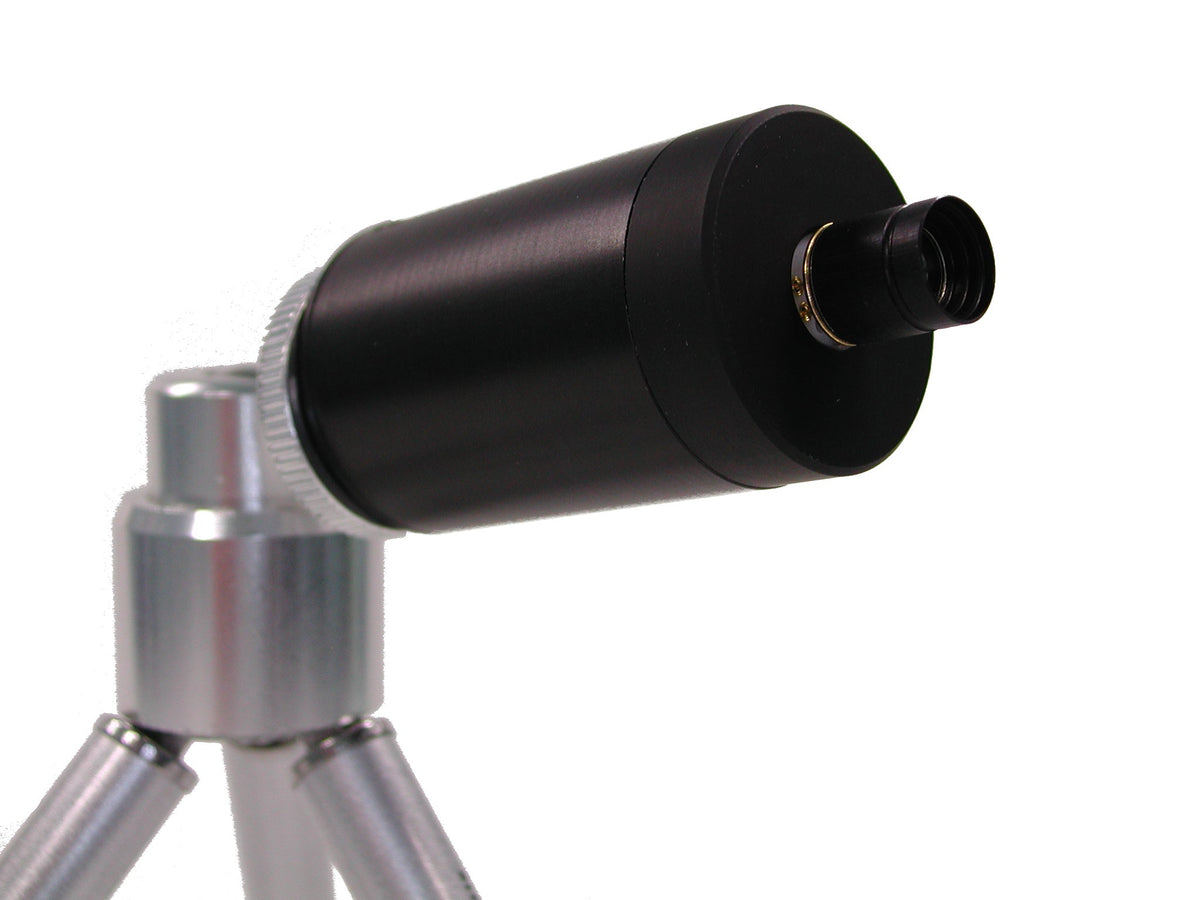

Applications Sets are available for quick-start imaging capability, and allow fast implementation of your system design. These are turnkey kits ready to go out of the box. Application sets include an infrared camera with integrated optics and an Ethernet interface for easy computer integration.
Multiple fields of view (FOV) are available (see Tech Specs tab).
A feature-rich Windows-based visualization program (ArraySoft) allows control and visualization of the image and temperature data streams from up to four cameras.
Download link: Thermal Imaging Basics Application Note
The set includes:
IR camera 80x64 digital interface (SPI)
Power supply
Table top tripod
Cables
ArraySoft software
| FOV / Optics |
120° x 90° deg. (L3.9) Germanium lens f/0.8 90° x 70° deg. (L4.8) - Germanium lens, f/0.8 41° x 33° deg. (L10) - Germanium lens, f/0.7 39° x 31° deg. (L10.5) - Germanium lens f/0.95 19° x 15° deg. (L21.5) - Si/Germanium lens f/0.9 12° x 9° deg. (L33) - Germanium lens (f/1.05) |
| Image | No shutter or thermal stabilization required |
| Power | via USB cable - included |
| ArraySoft Sofware | PC graphical user interface for HPTA application sets and sensor modules |
