GLIDER QCL External Cavity System

Item Description

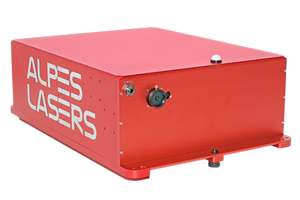

Alpes Laser’s GLIDER is designed for single-mode operation with wide spectral tunability. The Glider consists of single or multiple quantum cascade laser (QCL) gain chip, a grating-tuned extended optical cavity in Littrow configuration, driver electronics and control software. The system is delivered fully assembled in a closed housing and requires no alignment.

The Glider is available in either a single module configuration or in a multi-module configuration. The multi-module configuration can accommodate up to 4 different modules for larger coverage. The system comes with a controller providing a Web based graphical user interface allowing access to all the functionalities of the system. OEM version of the modules can be offered on demand for integration.

Key Features:

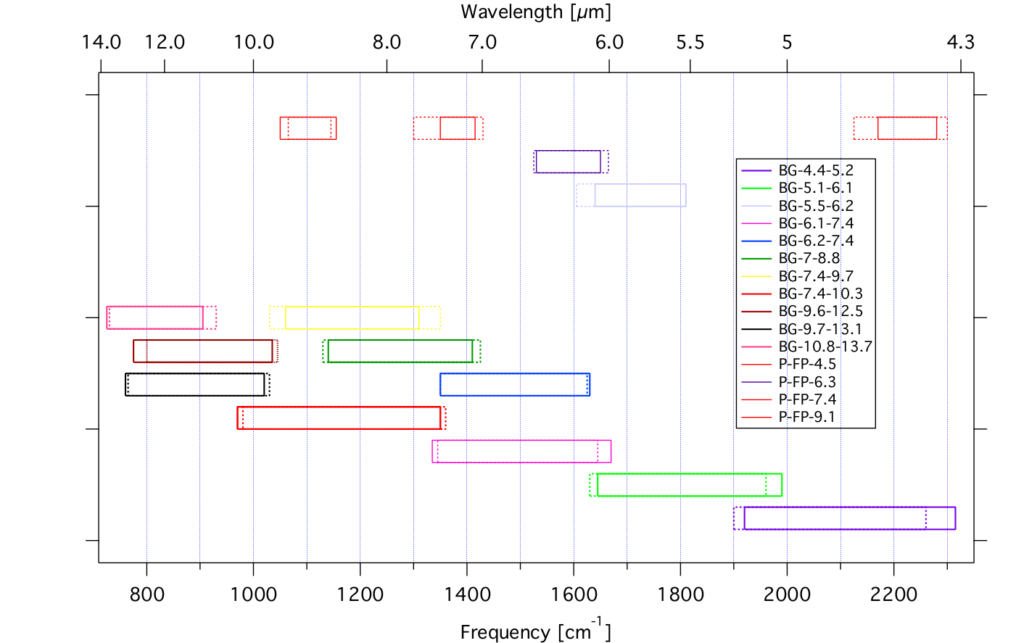

• Large scanning range
• Pulsed operation (CW in some cases)
• Modular
• Graphical interface
• Optional Fibered output
• Full beam steering control capabilities
• Standardized opto-mechanical interfaces
• Integrated acquisition system
• Gaseous purge available

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
