High-speed, high sensitivity infrared detectors with 3.3um bandpass filter
High-speed, high sensitivity infrared detectors with 3.3um bandpass filter
High-speed, high sensitivity infrared detectors with 3.3um bandpass filter
High-speed, high sensitivity infrared detectors with 3.3um bandpass filter
High-speed, high sensitivity infrared detectors with 3.3um bandpass filter
Boston Electronics

High-speed, high sensitivity infrared detectors with 3.3um bandpass filter

Regular price $56.00 $0.00

    Item Description

    Sensitive, room temperature 0.7x0.7 mm IR detector with a 3.3um bandpass filter for gas measurements.  Detector is a RoHS compliant InAsSb device, and can directly replace detectors containing lead, mercury, or cadmium. They are packaged in a TO-46 housing or ceramic SMD; select your package in the pull-down menus above.

    Applications include gas sensing, and flame detection.

    Features

    • High sensitivity
    • High-speed response
    • High shunt resistance
    • RoHS compliant (lead, mercury, cadmium free)

      Please contact us to discuss your specific needs and to ensure you have selected the best detector for your measurement needs.  boselec@boselec.com  +1-617-566-3821

        Product Technical Specs

        • Summary product specifications are below
        • View and download the detailed product sheet at the Download PDF tab
        • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
         Detector
        Part Number P13243-033MF (TO-46) or -033CF (SMD)
        Type Photovoltaic InAsSb detector

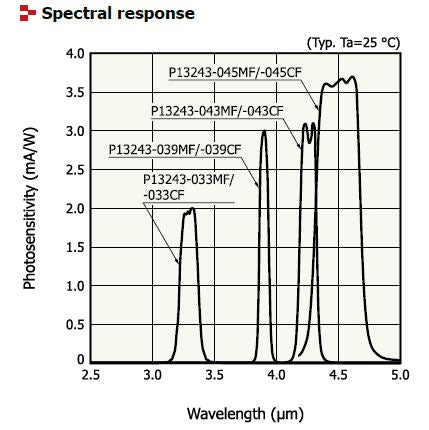

        Bandpass Peak 3.3 um
        Cooling Room temperature
        Detectivity D* = 5.1E8
        Rise time 15ns
        Detector Size 0.7 x 0.7 mm2
        Field of View (FoV) 82 (TO-46) and 90 (SMD) degrees
        Package TO-46 or SMD
