High-speed, high sensitivity infrared detectors with 4.26um bandpass filter

    Item Description

    For purchase and shipment only in North America (USA, Canada, Mexico).  Please contact your local Hamamatsu office in other countries.

    Sensitive, room temperature 0.7x0.7 mm IR detector with a 4.26um bandpass filter for gas measurements.  Detector is a RoHS compliant InAsSb device, and can directly replace detectors containing lead, mercury, or cadmium. They are packaged in a TO-46 housing or ceramic SMD; select your package in the pull-down menus above.

    Applications include gas sensing, and flame detection.


    • High sensitivity
    • High-speed response
    • High shunt resistance
    • RoHS compliant (lead, mercury, cadmium free)

      Please contact us to discuss your specific needs and to ensure you have selected the best detector for your measurement needs.  boselec@boselec.com  +1-617-566-3821

        Product Technical Specs

        • Summary product specifications are below
        • View and download the detailed product sheet at the Download PDF tab
        • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
        Part Number P13243-043MF (TO-46) or -043CF (SMD)
        Type Photovoltaic InAsSb detector

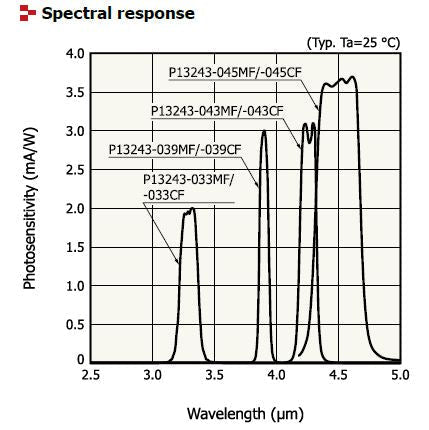

        Bandpass Peak 4.26 um
        Cooling Room temperature
        Detectivity D* = 6.9E8
        Rise time 15ns
        Detector Size 0.7 x 0.7 mm2
        Field of View (FoV) 82 (TO-46) and 90 (SMD) degrees
        Package TO-46 or SMD
