Infrared detectors with band-pass filter (3.3 μm and 3.9 μm)
Infrared detectors with band-pass filter (3.3 μm and 3.9 μm)
Boston Electronics

Infrared detectors with band-pass filter (3.3 μm and 3.9 μm)

Regular price $144.00 $0.00

    Item Description

    The P13243-015CF is a two-wavelength package. InAsSb photovoltaic detectors are packaged with two band-pass filters with center wavelength of 3.3 μm and 3.9 μm. Products using two filters are suitable for gas measurement. The environmentally friendly infrared detectors do not use lead, mercury, or cadmium, which are substances restricted by the RoHS Directive. It is replacement for conventional products containing these substances.

    Features

    • High sensitivity
    • High-speed response
    • High shunt resistance
    • Compact surface mount ceramic package
    • RoHS compliant (lead, mercury, cadmium free)

      Please contact us to discuss your specific needs and to ensure you have selected the best detector for your measurement needs.  boselec@boselec.com  +1-617-566-3821

        Product Technical Specs

        • Summary product specifications are below
        • View and download the detailed product sheet at the Download PDF tab
        • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
         Detector
        Part Number P13243-015CF
        Type Photovoltaic InAsSb detector

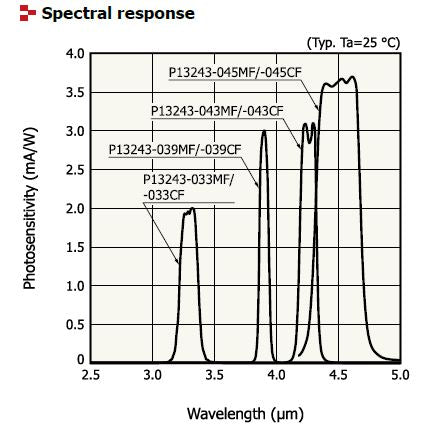

        Bandpass Peak 3.3 um and 3.9um
        Cooling Room temperature
        Detectivity D* = 5.1E8 (3.3um), 6.5E8 (3.9um)
        Rise time 15ns
        Detector Size 0.7 x 0.7 mm2
        Field of View (FoV) 90 degrees
        Package SMD
