Relative Measurements from 0.1 to 30 THz- Broadband, room temperature operation, easier to use and less expensive than a Golay cell

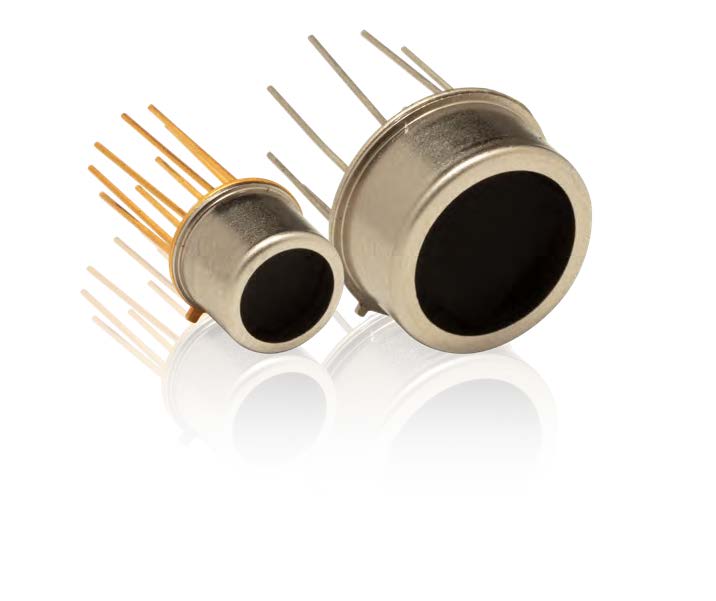

Easy to Integrate Format- TO5 and TO8 packages make the QS-THZ detectors small and easy to integrate in an existing system
Several Sensor Sizes Available - Choice of 2 x 2 mm and 5 and 9 mm Ø
Calibrated at 0.63 µm - QS-THZ detectors are calibrated at a single wavelength (0.63 µm) and include typical wavelength correction data from 0.25 to 440 µm. They are used for relative measurements outside that range.
Test Box Available - Can be used with our QS-I-TEST evaluation test boxwhich provides mounting and power supply.
See our catalog of THz detectors and power measurement instruments.
| Item |
QS5-THZ-BL |
QS9-THZ-BL |
| Voltage Responsivity |
120 kV/W | 30 kV/W |
| Effective Aperture | 5 mm dia. | 9 mm dia. |
| Package | TO-5 | TO-5 |
| Spectral range | 0.1 - 30 THz | 0.1 - 30 THz |
| 3000 - 10 um | 3000 - 10 um |
