TeraScan 100 - sub-THZ 3D Imaging Scanner

Item Description

In-depth 3D sub-THz scanner based on FMCW radar technology

  • A high performance 120GHz, 240GHz or 300GHz FMCW radar transceiver in combination with dedicated beam shaping THz optics
  • Transceivers are interchangeable
  • Fully automated mechanical 3D scanning gantry frame offering a 300x300mm scan area

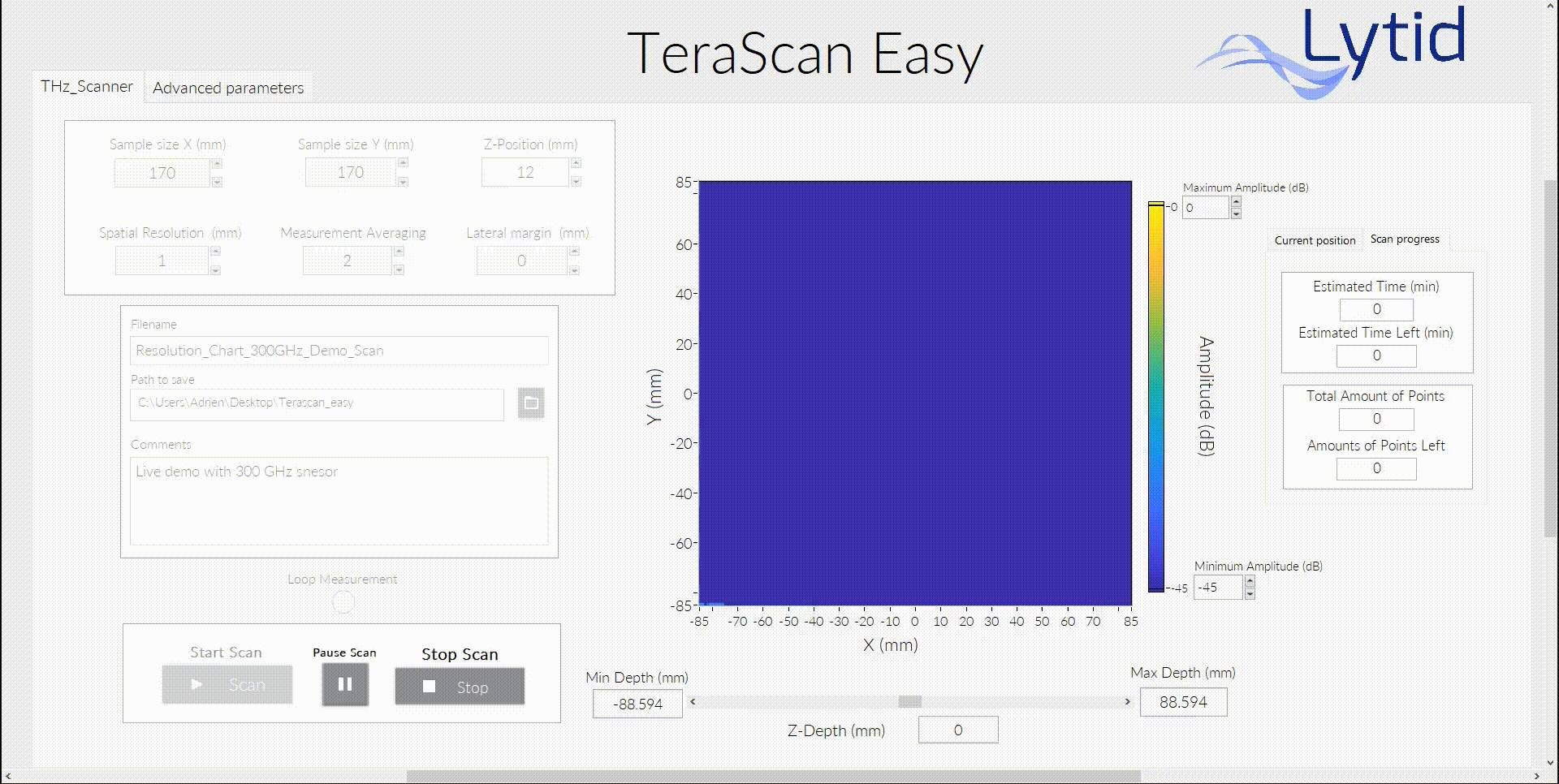

  • TeraScanEasy© software for data acquisiton and scanner control

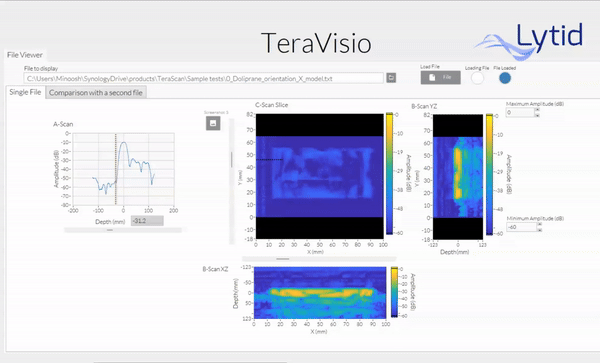

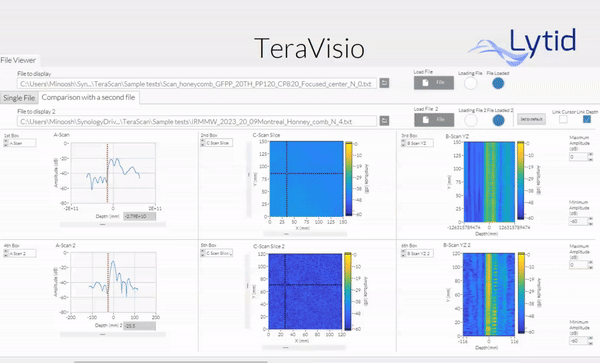

  • TeraVisio 3D©, 3D terahertz radar imaging processing and visualization software

Turn key, all-in-one terahertz imaging solution – TeraScan 100 is a cost effective tool to explore terahertz (THz) imaging applications. It includes both hardware and software to provide the user a turn key imaging tool. TeraScan 100 includes your choice of 120 GHz., 240 GHz or 300 GHz FMCW transceiver with 20GHz bandwidth mounted on x-y-z motorized translations stages to scan up to 300x300mm large samples.

The TeraScan as delivered is easy to assemble and comes with all scanner parts, tools and software.

    Product Technical Specs

    • Summary product specifications are below
    • View and download the detailed product sheet at the Download PDF tab
    • Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
     Optical Data
    Frequency band 120 GHz, 240 GHz or 300 GHz
    20 GHz
    Imaging area 300mm x 300mm (11.8in x 11.8in)
    Optics Interchangeable beam-shaping lenses
    Software TeraScan and TeraVision 3D
    Dynamic range 40 - 60dB
