VioBeam-1X1 - Ultra-Narrow Beam UV LED

Item Description

VioBeam-1X1 - Ultra-Narrow Beam UV LED.

The VioBeam-1X1 is an ultra narrow beam, high-power UV LED module that can be used for collimation, fiber coupling, and focused illumination applications. The module combines a high-performance deep UV LED (255nm/265nm/275nm/295nm/310nm), an integrated 10° fused silica TIR optic, and a compact heatsink. Delivering up to 0.1 W optical output in an exceptionally focused and precise beam, the VioBeam-1X1 is ideal for spectroscopy, life science, and fiber coupling applications.

The VioBeam is optionally available with heat sink and driver to create an application set.

• To see the full line of Violumas UV LEDs that we offer click here.
• We have standard heat sinks for all COB.  Select the heat sink below, Thermal Management Catalog
• If you are pulsing your LEDs see the UPS Driver Board for programmable control of your devices.

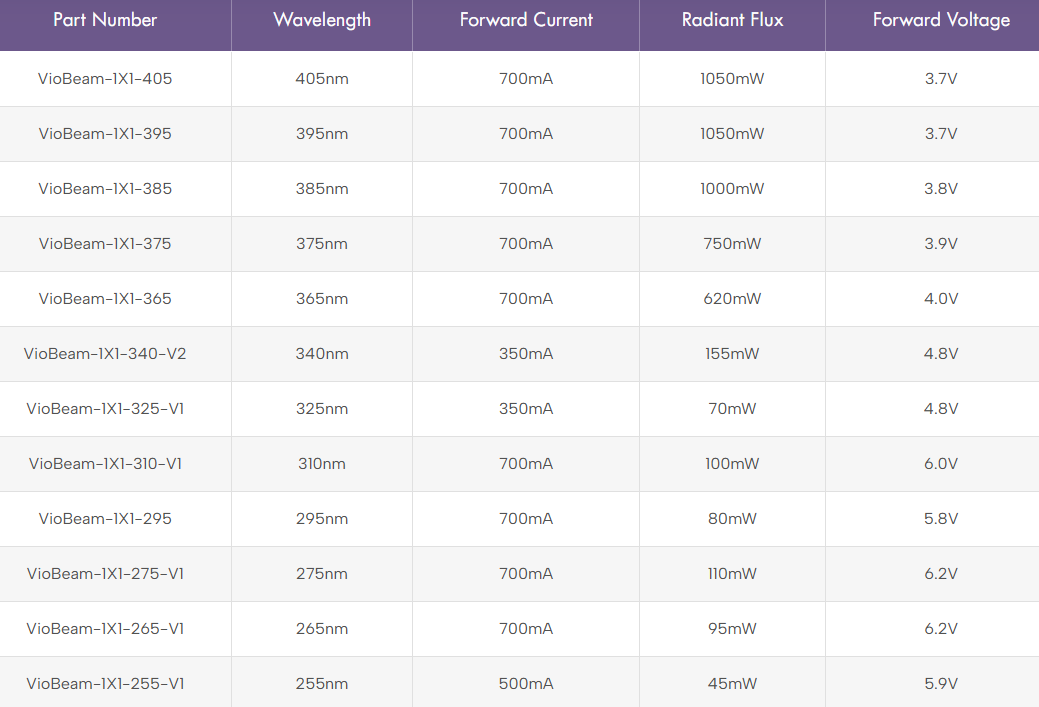

Product Technical Specs

• Summary product specifications are below
• View and download the detailed product sheet at the Download PDF tab
• Please contact us with any questions for or assistance via our contact request page or at 617-566-3821
